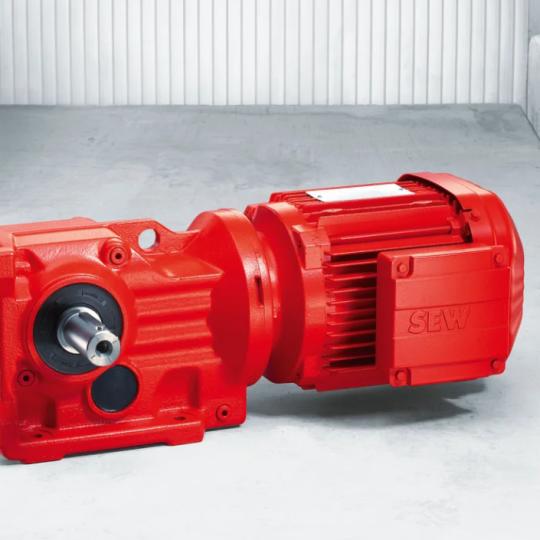

Động cơ giảm tốc SEW Typ: KH127/T R87 DRN132S4/BE11HF/TF/V/C/DUE Helical bevel geared motor K..DRN.. (IE3) as same as s/n.: 01.7360937203.0006.16

Typ: KH127/T R87 DRN132S4/BE11HF/TF/V/C/DUE
Helical bevel geared motor K..DRN.. (IE3)
This product is a special design
as same as s/n.: 01.7360937203.0006.16
Product data
Speed 50Hz [r/min] : 1464 / 5.8
Speed 60Hz [r/min] : 1768 / 7.0
Total ratio [i] : 253 / infinite
Ma max [Nm] : 13.000
Output torque 50Hz [Nm] : 8380
Output torque 60Hz [Nm] : 6940
Service factor SEW-FB : 1,55 / 1,85
Mounting position : M4A
Term.box.pos.[°] / cable entry : 90 (B) / position 1
Lubricant / -volume [l] : CLP HC 220 Synth.Oil / 51,00 / 7,20
Corrosion protection : Yes
Special measure : Contour recesses injected with rubber.
Surface protection : OS4 to technical data sheet 01802__94
Paint coat : Top coat RAL3020 (traffic red)
Test certificate : Create test report 2.2 according to EN 10204
Hollow shaft : 105mm
Design : Hollow shaft with shrink disc
Safety cover : With fixed, high plastic cover for
hollow shaft or shrink disk
Output oil seal material : FKM
Special design – general : Oil drain valve, variant "straight" for metrical tapped hole,
to technical data sheet SEW code 210
Technical data sheet SD other : 19005_06
Number of oil sight glasses : 1
Position of oil sight glass 1 : B61
Add. feature gen. information : T with torque arm
Breather valve : Nirosta type
Screw plug bore dimens. sheet : 330011495
Documentation no. A : 21932778
Parts list : 382721895
Mounting pos.primary gear unit : M4
Primary gear unit position [°] : 90
Number of oil sight glasses : 1
Position of oil sight glass 1 : B31
Breather valve : Nirosta type
Screw plug bore dimens. sheet : 010020696
Parts list : 012770796
Output oil seal material : FKM
Motor power [kW] : 5.5
Cyclic duration factor S1-S10 : S1
Multi range-voltage 50Hz [V] : 380-400 delta / 660-690 star
Nominal current [A] : 11,00 / 6,40
Multi range-voltage 60Hz [V] : 440-460 delta
Nominal current [A] : 9,50
Voltage tolerance : U (TOL.B) +/-10%
cos phi : 0,84 / 0,82
Wiring diagram : R13 / 680010306
Thermal cl.[°C]/Enclosure[IP] : 155(F) / 56
International efficiency class : IE3
Efficiency 50Hz at 50/75/100% Pn [%] : 90,1 / 90,4 / 89,6
Efficiency 60Hz at 50/75/100% Pn [%] : 90,9 / 91,8 / 91,7
CE mark : Yes
Brake : BE11
Brake monitoring : Diagnostic unit /DUE for function
and wear monitoring
Brake monit. wiring diagram : Z10 / 690860214
Manual brake release : HF = lockable manual brake release
Position brake release [°] : 303
Brake voltage [V]/-torque [Nm] : 400 AC / 20
Brake voltage range [V] : 380-480 AC
Brake rectifier : BME1.5
Brake wiring diagram : B101 / 690020006
Fan guard element : C = protection canopy
Forced cooling fan : V = Forced cooling fan
Forced cooling fan voltage [V] : Single-phase:220...277VAC,
50/60Hz Delta: 200...303VAC,
50Hz Star: 346...525VAC, 50Hz
Delta: 220...332VAC, 60Hz Star:
380...575VAC, 60Hz
Flow rate air [m3/h] :295
Forced cool.fan wir.diagr.no. : 690240007
Term.box pos.forc.cool.fan [°] : 90 (B)
Motor protection : TF = PTC Temperature sensor
Terminal assignment diagram : 661170414
Wet acid protection of winding : Yes
Terminal box : Terminal box lower part made of gray cast with tapped hole 4xM25, 2xM16
Terminal box dimension : IMPORTANT: Terminal box
dimension deviates from catalog
dimension sheet
Grounding terminal : With external grounding terminal on terminal box (low frequency grounding)
Documentation no. A : 21927170
Nameplate : English
Nameplate position : 180°
Nameplate language 2nd set : English
Nameplate position 2nd set : Loosely enclosed in a plastic bag
Nameplate text : U (TOL.B) +/-10%
Opera.instr. A lang./quantity : German / 0
Parts list/language/quantity : German / 0
Commodity code : 85015220
Weight : 657 kg
