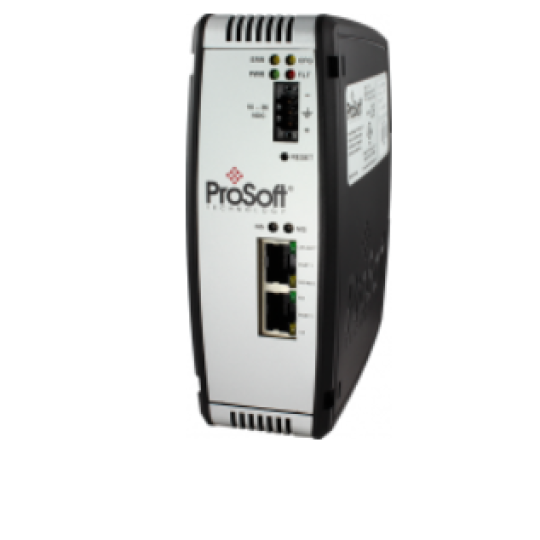

EtherNet/IP to ASCII

PLX31-EIP-ASCII

ProSoft Technology’s EtherNet/IP™ to ASCII communication gateway allows high-speed bi-directional data transfers between EtherNet/IP™-enabled PACs and ASCII devices such as weigh scales and barcode readers. The EtherNet/IP™ protocol driver supports the explicit messaging implementation. The gateway is user-configurable as both a client and a server.

EtherNet/IP™ PACs include Rockwell Automation® ControlLogix® and CompactLogix™, as well as several Schneider Electric® controllers. Applications for this module are found in most industries, especially manufacturing, oil & gas, electrical power and food processing.

The gateway has several features that allow for simplified integration, reduced commissioning time and optimized performance.

Features and Benefits

Data prioritization: Multiple I/O connections allow you to set RPIs for status and/or control data, optimizing Ethernet bandwidth.

Includes an embedded EDS Add-On Profile, allowing for simplified integration and reduced commissioning time.

Includes a SD card slot (SD card optional) for storing configuration files. This can be used for disaster recovery.

ProSoft Discovery Service: This utility allows your PC to see the gateway and change its default IP address without being on the same subnet.

Secure module configuration via module switch (v1.04 and greater).

Up to 10,000 16-bit registers can be used to exchange large amounts of data.
