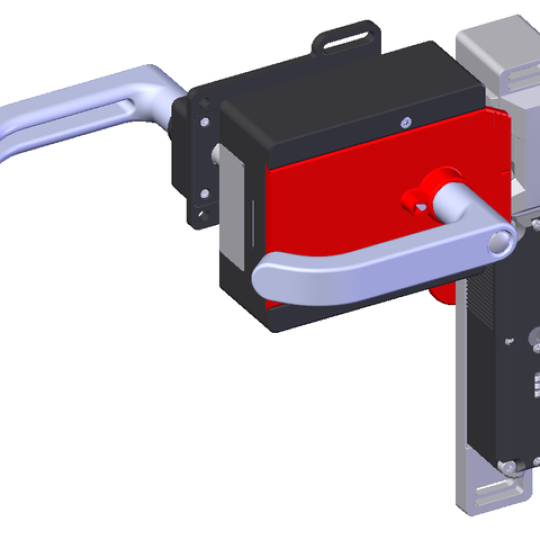

Euchner MGBS-P-L1HE-AP-U-L-SA-161559 (ORDER NO. 161559)

MGBS set AP, M12, with escape release, door hinge on left

Locking module with handle module

suitable for doors hinged on the left

Short circuit monitoring

2 safety outputs (semiconductor outputs)

Up to category 4 / PL e according to EN ISO 13849-1

With plug connector M12

Unicode

Door monitoring output

incl. escape release and inner door handle

Escape release AE-R-S1-158322 (Order No. 158322)

Ambient temperature	-20 ... +55 °C
Installation orientation	any
Material
Housing	Die-cast zinc, stainless steel powder-coated, brass
Mechanical life	1 x 10⁶

Additional feature

with silver-colored handle

Handle modules MGBS-H-BA1A3-L-157544 (Order No. 157544)

Ambient temperature	-20 ... +55 °C
Degree of protection	IP65
Installation orientation	Door hinge DIN left
Material
Housing	Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Additional feature	with automatic lockout mechanism
Product version number	V1.0.0

Repeat accuracy R
according to EN 60947-5-2	10 %

Current consumption
IUB	40 mA
IIMP	400 mA
Degree of contamination (external, according to EN 60947-1)	3
EMC protection requirements	according to EN IEC 60947-5-3
Fusing
external (operating voltage UB)	0.25 ... 8 A
external (solenoid operating voltage IMP)	0.5 ... 8 A
Operating voltage DC
UUB	24 V DC -15% ... +15% reverse polarity protected, regulated, residual ripple 5%, PELV
Power consumption	6 W
Rated impulse withstand voltage U_imp	0.5 kV
Rated insulation voltage U_i	50 V
Safety class
EN IEC 61140	III
Solenoid duty cycle	100 %
Solenoid operating voltage DC
UIMP	24 V DC -15% ... +10% reverse polarity protected, regulated, residual ripple 5%, PELV
Switching load
according to UL	24V DC, Class 2
Test pulse interval	min. 100 ms
Test pulses	max. 0.3 ms
Utilization category
DC-13	24V 150mA
	Monitoring output OD, OI
Output type	p-switching, short circuit-proof
Output voltage	0.8xUB ... UB V DC
Switching current	1 ... 50 mA
	Safety outputs FO1A / FO1B
Discrepancy time
both safety outputs	max. 10 ms according to EN IEC 60947-5-3
Off-state current Ir	max. 0.25 mA
Output type	2 semiconductor outputs, p-switching, short circuit-proof
Output voltage
HIGH U(FO1A) / U(FO1B)	UB-1.5 ... UB V DC
LOW U(FO1A) / U(FO1B)	0 ... 1 V DC
Switching current
per safety output FO1A / FO1B	1 ... 150 mA
Turn-on time	max. 400 ms

Actuating force	10 N
Ambient temperature
at UB = 24V DC	-20 ... +55 °C
Approach speed	max. 20 m/min
Connection	1 plug connector M12, 8-pin
Degree of protection	IP67/IP69/IP69K
Extraction force	20 N
Guard locking principle	Closed-circuit current principle
Installation orientation	Door hinge DIN left
Locking force F_max	3900 N
Locking force F_Zh	3000 N
Material
Safety switch housing	reinforced thermoplastic
Switch head cover	Die-cast zinc
Switch bracket	Die-cast zinc
Mechanical life	1 x 10⁶
Overtravel	5 mm
Ready delay	max. 1 s
Retention force	20 N
Shock and vibration resistance	according to EN 60947-5-3
Switching frequency	max. 0.5 Hz

Additional feature	Escape release actuated by pushing
The following applies to the approval according to UL	Operation only with UL Class 2 power supply or equivalent measures; see operating instructions
