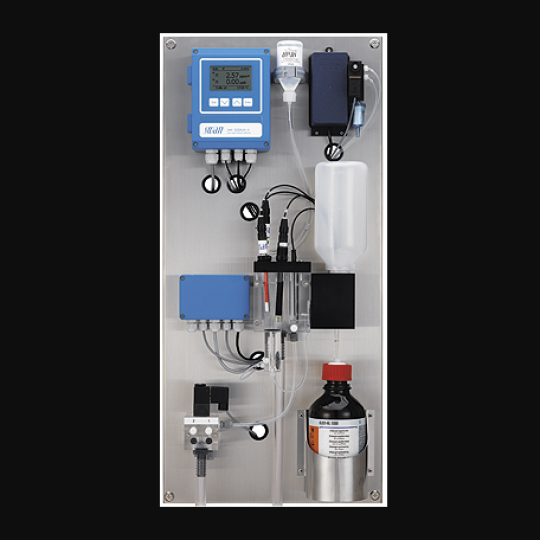

Hệ thống phân tích lưu huỳnh Swan Analyzer AMI Sodium A AC
Description
Sodium analyzer for steam, condensate and high purity water in the range 0.1 - 10'000 ppb.
For acidic samples with low pH ≥ 2 (e.g. sampling after cation exchangers).
Active alkalization reagent addition system for diisopropylamine with continuous pH monitoring.
Simple two-point calibration with storage of calibration history.
Easy to use grab sample capability.
Available in a single or dual stream version.
-
Liên hệ
-
1050
- Thông tin sản phẩm
- Bình luận
Specifications
| Sodium measurement | Sodium glass electrode, screw cap. Calomel reference electrode, screw cap |
| Measuring range | 0.1 ppb ... 10 ppm |
| Accuracy | ±5 % of reading |
| Repeatability | 5 % |
| Response time | 180 s (95%) |
|
|
|
Power supply |
|
| Voltage | 100-240 VAC (±10%), 50/60Hz or 10-36 VDC |
| Power consumption | max. 35 VA |
|
Sample conditions |
|
| Flow rate | min. 100 ml/min. |
| Temperature | 5 ... 45 °C (41 ... 113 °F) |
| Inlet pressure | 0.3 ... 3 bar (4 ... 43 PSI) |
| Outlet pressure | ambient pressure |
| pH Value | ≥ pH 2.0 |
| Ammonium concentration | < 50 ppm |
| Suspended solids | < 10 ppm, no oil, no grease |
Consumables
| Order/No. | Description |
|---|---|
| A-82.939.010 | Sealing kit for reagent bottle |
| A-85.141.400 | Sodium standard solution 1'000ppm, bottle with 100ml |
| A-87.729.010 | Etching kit for Swansensor Sodium |
| A-87.892.400 | Electrolyte for Swansensor Sodium Reference, 100ml |
| C-82.880.010 | Air filter, 2 pcs. |
Accessories
| Order/No. | Description |
|---|---|
| A-81.420.020 | AMI Option; Profibus- / Modbus Interface |
| A-81.420.042 | AMI Option; USB Interface |
| A-81.420.050 | AMI Option; 3rd signal output |
| A-81.420.060 | AMI Option; HART Interface |
| A-82.611.060 | AMI Sample Sequencer; AC |
| A-82.612.060 | AMI Sample Sequencer; DC |
| A-83.590.044 | Option for 2nd sample stream for AMI Sodium A |
| A-88.224.220 | Communication cable, AMI to PC, 2 m |
Spare parts
| Order/No. | Description |
|---|---|
| A-82.930.020 | Calibration bottle PE, 1 liter |
| A-83.590.042 | Spare part set for AMI Sodium A |
| A-83.590.044 | Option for 2nd sample stream for AMI Sodium A |
| A-83.590.045 | Replacement parts for 2nd sample stream option for AMI Sodium P/A |
| A-83.910.010 | Screw fitting 12mm/M20 |
| A-86.180.010 | Sample tubing, LD-PE, 6x4 mm, 3m |
| A-87.027.020 | Swansensor NT5K, 0.8m |
| A-87.150.100 | Swansensor pH FL - version AMI Sodium |
| A-87.720.010 | Swansensor Sodium, screw plug |
| A-87.840.100 | Swansensor Reference Na |
| A-88.124.520 | Sensor cable 0.8 meter SMB/screw plug |
| A-89.811.060 | Set of fuses for AMI |
| C-82.930.010 | Reagent bottle Duran ISO GL 45, 1 liter |
| C-83.591.010 | Fitting between Schott GL45 and Merck Bottle |
| C-83.591.020 | Fitting GL45 for SCHOTT bottle |
