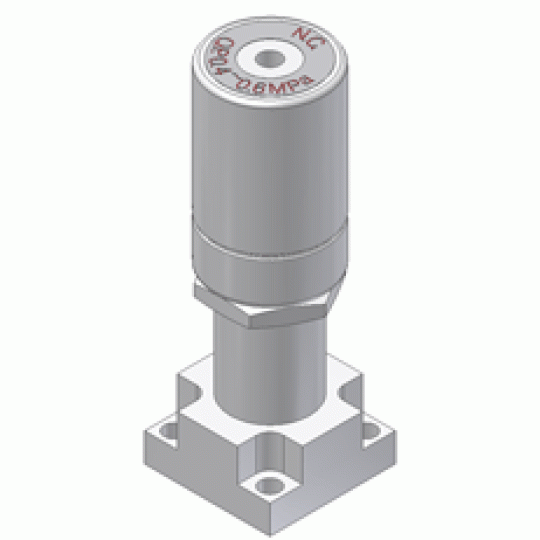

IGS Pneumatic Valve (11PDV6 / 15PDV6)  Model: D15PDV6-2WS-C-PX  TK-Fujikin Korea

IGS Pneumatic Valve (11PDV6 / 15PDV6) Model: D15PDV6-2WS-C-PX TK-Fujikin Korea

■ Highly resistant to corrosion using nickel-cobalt alloy diaphragm.

■ Minimal particle generation.

■ Minimal contributions of Moisture, Oxygen and Hydrocarbon.

■ W-seal components 1.125 in & 1.5 in.

■ Footprint and compact (footprint), to reduce the space required.

■ Assembly and lightweight for easy component.
  • D15PDV6-2WS-C-PX
  • Liên hệ
  • 2073
  • Thông tin sản phẩm
  • Bình luận

Major Specifications

Max. Working Pressure (G.) 1Mpa
Max. Working Temp. -10 ~ 80℃ (PCTFE) -10 ~ 150℃ (PFA)
Actuator Operating Pressure 0.4 ~ 0.6 Mpa
Cv 0.2
Internal, External Leakage Allowance (He)
Test Pressure ≤ 1×10-2 Torr
Holding Time ≥ 1 min.
1x10-10Pa · ㎥/s
Seat Across Leakage Allowance (He)
Test Pressure ≤ 1×10-2 Torr
Holding Time ≥ 15 sec.
1x10-10Pa · ㎥/s
Particle Inspection Pressure : 60 ~ 80psi N2 Gas
Sample Volume : 1CFM 0.1㎛ and Larger
No count
Inner Surface Roughness Ry ≤ 0.7㎛ 5 μinch Ra(Avg.)

Material

Body Diaphragm Seat Actuator
316L Stainless Steel Remelted Ni - Co Alloy PCTFE, PFA AL

■ Dimensions

Size Seal Type Port Part Number A B C H
1.125" W-Seal 2 11PDV6 - 2W - C 21.8 10 28.5 79.7
3 11PDV6 - 3W3T12 - C 21.8 10 28.5 79.7
C-Seal 2 11PDV6 - 2C - C 21.8 10.9 28.5 79.7
3 11PDV6 - 3C3T12 - C 21.8 10.9 28.5 79.7
1.5" W-Seal 2 15PDV6 - 2WS - C 30 6.5 26 86.4
2 15PDV6 - 2W - C 30 13 39 98
3 15PDV6 - 3W3T12 - C 30 13 39 102
C-Seal 2 15PDV6 - 2C - C 30.2 15.1 39 98
3 15PDV6 - 3C3T12 - C 30.2 15.1 39 102
