Indigo family replaces HMT330, DMT340, MMT330, PTU300, and HMT330MIK Dewpoint & Temperature Transmitter DMT346 Order Code: DMT340 6Q0K1B121A1A001A2D6K0C0

Indigo family replaces HMT330, DMT340, MMT330, PTU300, and HMT330MIK

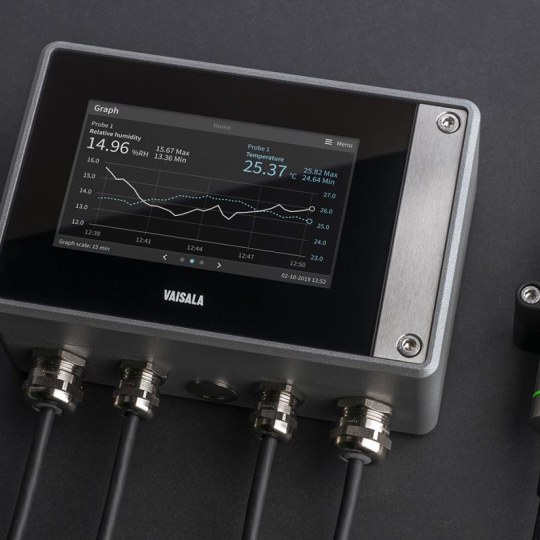

Discover the modular Indigo

The Vaisala Indigo family is a customizable instrument platform designed to improve process measurements. The Indigo family's key feature is modularity. It contains a selection of transmitters, interchangeable smart probes that measure various parameters, and software for easy interfacing and monitoring of data. Choose any probe and connect it with any of the transmitters, or integrate the probes into other systems. The Indigo platform is built on top of Vaisala’s self-produced, core sensor technologies. Optional cloud connectivity through Jade Smart Cloud enables remote monitoring capabilities.

Whether you measure humidity, temperature, dew point, moisture in oil, carbon dioxide, barometric pressure, or vaporized hydrogen peroxide, the accuracy and long-term stability of Indigo-compatible probes are in the class of their own. The probes deliver repeatable measurement with high resolution, providing you with data that you can rely on, which helps you to make better decisions – over the long term.

Mã sản phẩm:
Giá:
Liên hệ
Lượt xem:
67

Thông tin sản phẩm
Bình luận

HMT330

The equivalents for the HMT330 series are the Indigo500 series transmitter with the following Indigo probes:

HMT331 for wall mounting is now HMP1 probe + INDIGO500 transmitter
HMT333 for duct mounting and tight spaces is now HMP3 and HMP9 probes + INDIGO500 transmitter
HMT334 for high pressures up to 100 bar and vacuum conditions is now HMP4 + INDIGO500 transmitter
HMT335 for high temperatures is now HMP5 + INDIGO500 transmitter
HMT337 for high humidity and meteorological applications is now HMP7 + INDIGO500 transmitter
HMT338 for pressurized pipelines up to 40 bar is now HMP8 + INDIGO500 transmitter

DMT340

The equivalents for the DMT340 series are the Indigo500 series transmitter with the following Indigo probes:

DMT341 for wall-mounting, see also DMP7
DMT344 for pressurized processes, see also DMP8
DMT347 with small pressure-tight probe, see also DMP7
DMT348 for pressurized pipelines, see also DMP8

DMT345/346

The equivalents for the DMT345/346 series are the Indigo500 series transmitter with the following Indigo probes:

DMP5 and DMP6.

MMT330

The equivalents for the MMT330 series are the Indigo500 series transmitter with the following Indigo probes:

MMT332 for high pressure installations, see also MMP8
MMT337 for tight spaces with a thread connection, see also MMP8
MMT338 for pipeline installations, see also MMP8

PTU300

The equivalents for the PTU300 series are the Indigo500 series transmitter with the following Indigo probes:

PTU301 for wall mounting is now HMP1 probe + INDIGO520 transmitter
PTU303 for duct mounting and tight spaces is now HMP3 and HMP9 probes + INDIGO520 transmitter
PTU304 for high pressures up to 100 bar and vacuum conditions is now HMP4 + INDIGO520 transmitter
PTU305 for high temperatures is now HMP5 + INDIGO520 transmitter
PTU307 for high humidity and meteorological applications is now HMP7 + INDIGO520 transmitter
PTU308 for pressurized pipelines up to 40 bar is now HMP8 + INDIGO520 transmitter
