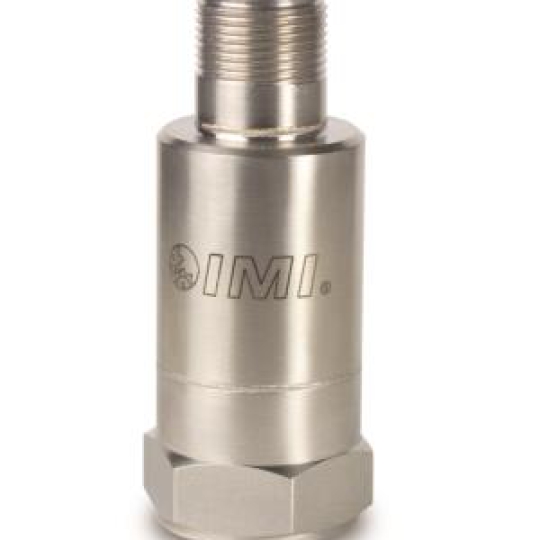

M641B01 | Cảm biến vận tốc đầu ra 4-20 mA M641B01 | 4-20 mA Output Velocity Sensor

Platinum Stock Products; Industrial vibration sensor, 4 to 20 mA output, 0 to 1 in/sec RMS, 10 to 1k Hz, top exit, 2-pin conn

Measurement Range: 0.0 to 1 in/sec rms ( 0.0 to 25.4 mm/s rms)

Output: 4-20 mA

Frequency Range: (±10%)600 to 60000 cpm ( 10 to 1 kHz)

Sensing Element: Ceramic

Weight: 4.7 oz ( 131 gm)

Mã sản phẩm:
M641B01
Giá:
Liên hệ
Lượt xem:
1222

Thông tin sản phẩm
Bình luận

ENGLISH:	SI:
PERFORMANCE
Measurement Range	0.0 to 1 in/sec rms	0.0 to 25.4 mm/s rms	[ 3]
Output	4-20 mA	4-20 mA
Frequency Range (±10 %)	600 to 60000 cpm	10 to 1 kHz	[ 1] [ 2]
Broadband Resolution	0.005 in/sec rms	0.13 mm/s rms	[ 4]
Non-Linearity	±1 %	±1 %
ENVIRONMENTAL
Temperature Range	-40 to 185 °F	-40 to 85 °C
Enclosure Rating	IP68	IP68
ELECTRICAL
Excitation Voltage	12 to 30 VDC	12 to 30 VDC
Settling Time (within 2% of value)	<15 sec	<15 sec
Electrical Isolation (Case)	>100000000 Ohm	>100000000 Ohm
PHYSICAL
Size - Hex	1.0 in	25.4 mm
Size - Height	2.6 in	66 mm
Weight	4.7 oz	131 gm
Mounting Thread	1/4-28 UNF	No Metric Equivalent
Mounting Torque	3 to 5 ft-lb	4 to 7 Nm
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Stainless Steel	Stainless Steel
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	2-Pin MIL-C-5015	2-Pin MIL-C-5015
Electrical Connection Position	Top	Top
Electrical Connections (Pin A)	4-20 mA Pos (+)	4-20 mA Pos (+)
Electrical Connections (Pin B)	4-20 mA Neg (-)	4-20 mA Neg (-)

* All specifications are at room temperature unless otherwise specified

Specification Notes

[ 1] 1Hz = 60 cpm (cycles per minute).
[ 2] Current will fluctuate at frequencies below 5 Hz.
[ 3] Conversion Factor 1 in/sec = 0.0254 m/sec.
[ 4] Typical.
[ 5] See PCB Declaration of Conformance PS039 or PS053 for details.

Accessories


Supplied
081A40	Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip	1
ICS-4	NIST-traceable single axis amplitude response cal from 0 to +10% freq. (for 4 to 20 mA sensors)	1
