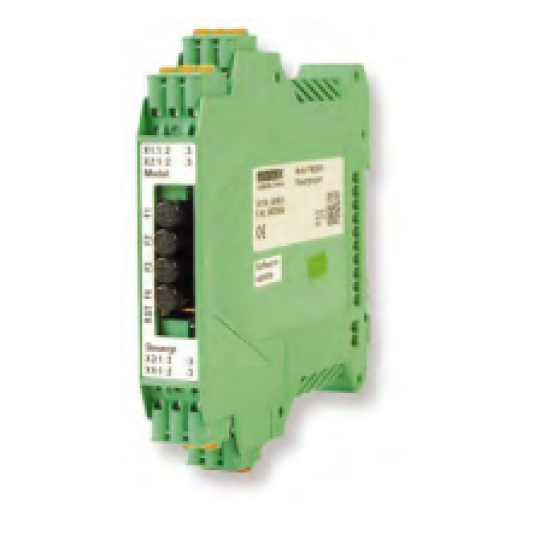

Mô đun điều khiển FMZ 5000 control group module Part no.: 901673 Minimax

Application
For monitoring and control of e.g. valves, solenoids or horns in extinguishing systems or other fire protection devices.
The module is inserted into the panel with separate power supply by power distribution module. The powersupply and system communication are connected via plug-in connections on the module enclosure.
Up to 64 modules can be used in one fire alarm panel.
Included in delivery
Module completely assembled and ready for installation in the fire alarm panel.
Not included in delivery
4 Socket terminal strips FKCT 2.5/3-ST 901564
Spare parts
Fuse 2 A / 125 V 784352
Note
If the module is used to sounders or extinguishing devices
in multi-zone extinguishing systems, a separate control
group module must be used for each extinguishing zone.
Approvals / marking
See panels
