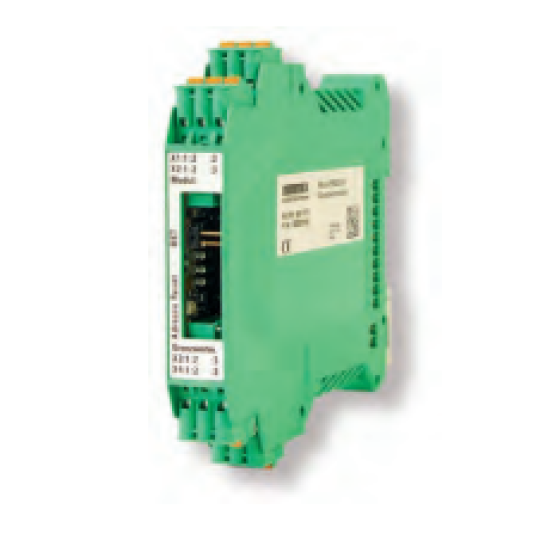

Functional module for use in all design variants of the fire alarm system FMZ 5000. Includes 4 quiescent current monitored detector lines for the connection of conventional detectors in accordance with the applicable national regulations. A detector event is reported via a current increase. Each line has 4 adjustable thresholds:
quiescent current, wire breakage, short circuit, event.
The voltage of each line can be adjusted separately in the range of 9 V to 20 V. All conventional detectors in the Minimax detector range can be used with this operating voltage range, as well as devices from other manufactures.
Product features
• Large range of detector types available for in virtue of the wide adjustment range of the linevoltages and current thresholds
• All detectors can be operated with two-detector dependency and all zones with two-zone dependency
• All settings are carried out with the MxSysConconfiguration program
• No further adjustment is required
Application
For connection of any type of conventional detectors ormanual call points in standard or industrial design.
System monitoring takes place by connecting appropriate monitoring switches with dry contacts.
The module is inserted into the panel without additional wiring. The power supply and system communication areconnected via plug-in connections on the module enclosure.
Up to 64 modules can be used in one fire alarm panel.
Included in delivery
Module completely assembled and ready for installation
in the panel.
Not included in delivery
4 Socket terminal strips FKCT 2.5/3-ST 901564
Note
Each module may be operated only with detectors produced
by one manufacturer.
Approvals / marking
See panels
