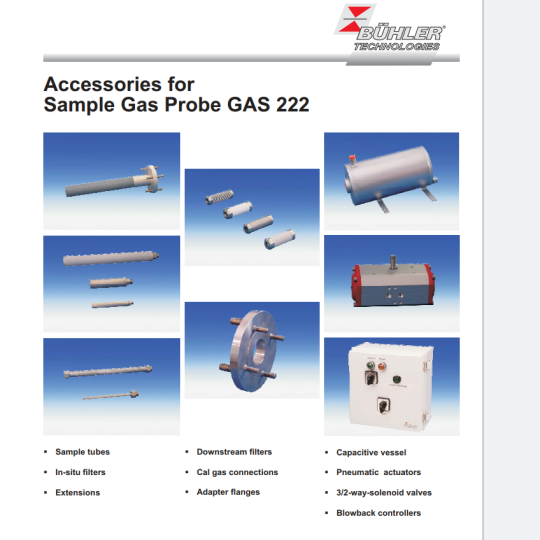

Sample tubes, in-situ filters and extensions

§ § §

Various materials

Various dimensions

Heated or nonheated extensions

In-situ filter

Part No.:

Material

T max.

Length

Pore size

035 μm237 mm600°C stainless steel

46222303

03F 0.5 μm 237 mm 600°C stainless steel

46222303F*

03H 5 μm 237 mm600°C Hastelloy

46222303H*

03HF 0.5 μm237 mm600°C Hastelloy

46222303HF*

04 stainless steel 600°C 538 mm 5 μm

46222304

041 stainless steel, with volume displacer 600°C 538 mm 5 μm

462223041

041HF Hastelloy, with volume displacer 600°C 538 mm 0.5 μm

462223041HF

04HF Hastelloy 600°C 538 mm 0.5 μm

46222304HF*

041H Hastelloy, with volume displacer 600°C538 mm 5 μm

462223041H*

04H Hastelloy 600°C538 mm 5 μm

46222304H*

041Fstainless steel, with volume displacer 600°C 538 mm 0.5 μm

462223041F*

04F stainless steel 600°C538 mm 0.5 μm

46222304F*

07 Ceramics / 1.4571 1000°C 478 mm 2 μm 1)

46222307

031 5 μm 237 mm 600°C stainless steel, with volume displacer

462223031

031F 0.5 μm 237 mm 600°C stainless steel, with volume displacer

462223031F*

031H 5 μm 237 mm 600°C Hastelloy, with volume displacer

462223031H*

031HF 0.5μm 237 mm 600°C Hastelloy, with volume displacer

462223031HF

35 stainless steel 600°C 229 mm 5 μm

46222359

35F stainless steel 600°C 229 mm 0.5 μm

46222359F*

07F Ceramics / 1.4571 1000°C 478 mm 0.3 μm 1)

46222307F*

07 ANSI Ceramics / 1.4571 1000°C 478 mm2 μm 1)

46222307C

Sample tubes, in-situ filters and extensions

§ § §

Various materials

Various dimensions

Heated or nonheated extensions

Protection shield

Part No.:

for in-situ filter 03

462223034

for in-situ filter 04

462223044

Extensions

Controller for heated extension integrated into probe controller

46222292

GF 0.5 m 230V1.4571 heated*

462223036

GF 1 m 230V 1.4571 heated*

462223033

GF 0.5 m 115V 1.4571 ANSI / CSA,heated*

462223036C1

GF 1 m 115V 1.4571 ANSI / CSA,heated*

462223033C1

Typ Material Mains voltage Length

1.4571 G3/4 0.2 m nonheated

4622230320200

1.4571 G3/4 0.4 m nonheated

4622230320400

1.4571 G3/4 0.5 m nonheated

4622230320500

1.4571 G3/4 0.7 m nonheated

4622230320700

1.4571 G3/4 1 m nonheated

4622230321000

1.4571 G3/4 1,2 m nonheated

4622230321200

1.4571 G3/4 1,5 m nonheated

4622230321500

1.4571 G3/4 2 m nonheated

4622230322000

1.4571 G1/2 0,25 m nonheated

4622235910250

1.4571 G1/2 0,5 mnonheated

4622235910500

1.4571 G1/2 0,7 m nonheated

4622235910700

1.4571 G1/2 1,5 m nonheated

4622235911500
