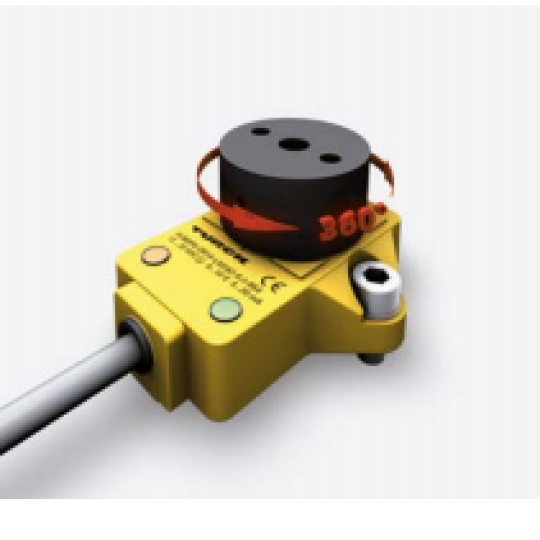

Inductive Angle Sensor

With Analog Output

Order number: 1590853

Rectangular, plastic

Many mounting possibilities

P1-Ri-QR14 included in delivery

Measuring range displayed via LED

Immune to electromagnetic interference

Resolution, 12-bit

4-wire, 15…30 VDC

Analog output

Programmable measuring range

0…10 V and 4…20 mA

Cable connection

EAN : 4047101274318

eCl@ss-Code (V5.1.4): : 27270501 -/- Encoder, absolute

Customs tariff number : 90318020

Country of origin : DE

Product type : Inductive Angle Sensor

Measuring range, degrees (min) : 0

Measuring range, degrees (max) : 360

Output type : absolute singleturn

Shaft Type : Blind hole shaft

Output function : Analog output

Housing material : Plastic

Operating voltage (min) : 15 VDC

Operating voltage (max) : = 30 VDC

Ambient temperature (min.) : -25 °C

Ambient temperature (max.) : 70 °C

Protection class : IP68 / IP69K
