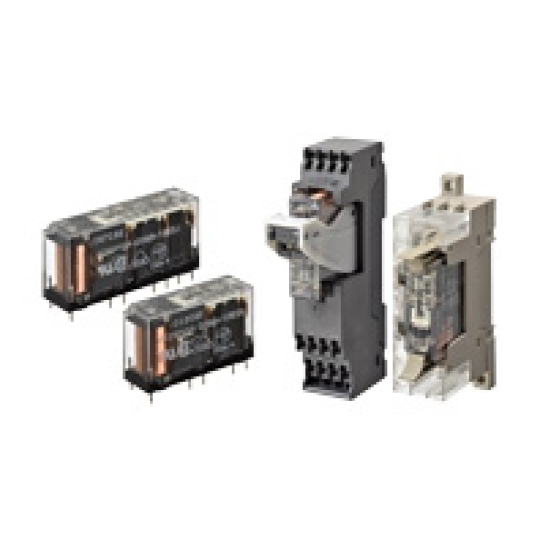

Rờ le an toàn Omron G7SA-3A1B DC24
Single stable, PCB terminal, Not equipped, 30 VDC 6 A, 250 VAC 6 A, Output 3PST-NO/SPST-NC (30 VDC 6 A)
Coil ratings 24 VDC 15 mA
Contact form 3PST-NO/SPST-NC
Contact material Au plating＋Ag alloy
Contact rated load 250 VAC 6 A (Resistive load)
30 VDC 6 A (Resistive load)
Terminal structure PCB terminal
-
G7SA-3A1B DC24
-
Liên hệ
-
2407
- Thông tin sản phẩm
- Bình luận
| Degree of protection | Flux tight | |
|---|---|---|
| Terminal structure | PCB terminal | |
| Coil | Coil ratings | 24 VDC 15 mA |
| Coil resistance | 1600 Ω | |
| Operate voltage (Set voltage) | 75% max. | |
| Release voltage (Reset voltage) | 10% min. | |
| Maximum voltage | 110% | |
| Power consumption | Approx. 360 mW | |
| Contact | Contact rated load | 250 VAC 6 A (Resistive load) 30 VDC 6 A (Resistive load) |
| Max. contact voltage | 250 VAC 125 VDC |
|
| Max. contact current | AC: 6 A DC: 6 A |
|
| Contact form | 3PST-NO/SPST-NC | |
| Contact material | Au plating＋Ag alloy | |
| Contact resistance | 100 mΩ max. (Voltage drop method with 5 VDC 1 A) |
|---|---|
| Operating time | 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, 23 ℃, not including contact bounce) |
| Maximum operating frequency | Mechanical: 36000 time/h Rated load: 1800 time/h |
| Insulation resistance | Between coil and contacts: 1000 MΩ min. (at 500 VDC) Between contacts of different polarity: 1000 MΩ min. (at 500 VDC) Between contacts of same polarity: 1000 MΩ min. (at 500 VDC) |
| Dielectric strength | Between coil and contacts: 4000 VAC 50/60 Hz 1 min Between contacts of different polarity (Between pole 3 and pole 4): 2500 VAC 50/60 Hz 1 min Between contacts of different polarity (Except for between pole 3 and pole 4): 4000 VAC 50/60 Hz 1 min Between contacts of same polarity: 1500 VAC 50/60 Hz 1 min |
| Vibration resistance (destruction) | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Vibration resistance (Malfunction) | 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance (destruction) | 1000 m/s2 |
| Shock resistance (Malfunction) | 100 m/s2 |
| Endurance (Mechanical) | 10,000,000 operations min. (switching frequency 36,000 operations/h) |
| Endurance (Electrical) | 100,000 operations min. (rated load) |
| Failure rate | 5 VDC 1 mA (failure level: Preference value, Switching frequency: 300 operations per minute) |
| Ambient temperature (Operating) | -40 to 85 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% RH |
| Weight | Approx. 22 g |
| Mounting method | Socket, Soldering |
