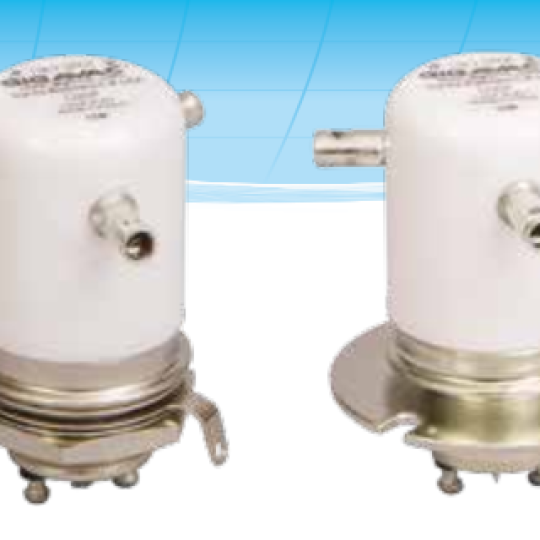

Rờ le cao áp G18WP 15KV SPDT HV Relay coil 26.5 Vdc Gigavac G18WP

0944911836 Ms. Duyên 0972835740 Ms. Hà 0385097045 Mr. Hiếu 0392468875 Ms. Anh 0707602728 Ms. Vân
Rờ le cao áp G18WP 15KV SPDT HV Relay coil 26.5 Vdc Gigavac G18WP

Rờ le cao áp G18WP 15KV SPDT HV Relay coil 26.5 Vdc Gigavac G18WP

FEATURES

Durable tungsten contacts with internal shield improve

load switching capability

Vacuum dielectric provides make and break load

switching capability

Mounting options in any axis

Solder or convenient threaded HV connections
  • Gigavac G18WP
  • Liên hệ
  • 2303
  • Thông tin sản phẩm
  • Bình luận
Contact & Relay Ratings Units G18
Contact Form C
Contact Arrangement SPDT
Contact Material (moveable/stationary) molybdenum
/tungsten
Dielectric Vacuum
Voltage, Test Max., Contacts & to
Base (15 μA Leakage Max.) dc or 60Hz
kV Peak 17
Voltage, Operating Max., Contacts & to
Base (15 μA Leakage Max.) dc or 60 Hz
kV Peak 15
Current, Load Switching see table
below
Current, Continuous Carry Max dc or 60 Hz Amps 30
Coil Hi-Pot (V RMS, 60 Hz) V 500
Capacitance
Across Open Contacts pF .05
Contacts to Ground pF 1
Resistance, Contact Max @ 1A, 28 Vdc ohms 0.025
Operate Time ms 15
Release Time ms 9
Life, Mechanical cycles 1 million
Weight, Nominal g (oz) 84 (3)
Vibration, Operating, Sine (55-500 Hz Peak) G’s 10
Shock, Operating, 1/2 Sine11ms (Peak) G’s 50
Temperature Ambient Operating °C -55 to +125
