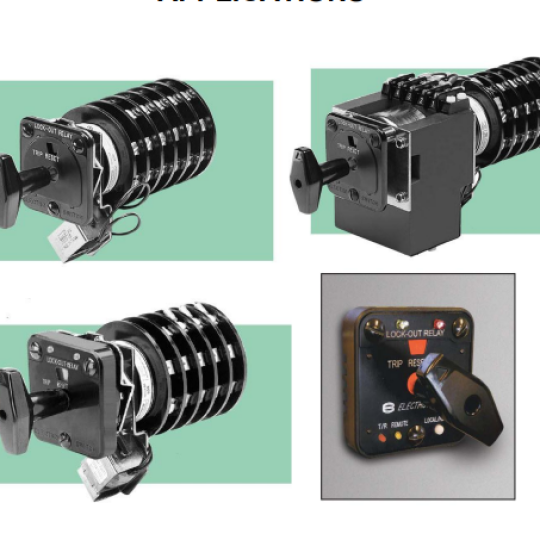

HOW TO ORDER LOCK-OUT RELAYS
1. Select desired trip-coil from data on pages 4 and 6.
2. Select reset coil voltage from chart below.
3. Choose appropriate catalog number below.
4. Units are supplied with engraved nameplate (code 17C-2L22) unless otherwise specified.
5. For other than standard relays shown below (or for your own documentation purposes) complete
DESIGN GUIDE (shown on pages 12, 13, 14).
MANUAL-RESET LOR DECKS
CATALOG NUMBERS with TRIP COILS
COIL A COIL B COIL C COIL D COIL E COIL F COIL G COIL H COIL K
3 7803A 7803B 7803C 7803D 7803E 7803F 7803G 7803H 7803K
5 7805A 7805B 7805C 7805D 7805E 7805F 7805G 7805H 7805K
8 7808A 7808B 7808C 7808D 7808E 7808F 7808G 7808H 7808K
10 7810A 7810B 7810C 7810D 7810E 7810F 7810G 7810H 7810K
STANDARD TRIP ELECTRIC-RESET LOR/ER HIGH-SPEED TRIP,ELECTRIC-RESET LOR/ER DECKS RESET COIL VOLTAGE
CATALOG NUMBERS with TRIP COILS COIL D COIL E COIL F
3 125 VDC 7833DD 7833ED 7833FD
5 125 VDC 7835DD 7835ED 7835FD
8 125 VDC 7838DD 7838ED 7838FD
10 125 VDC 7840DD 7840ED 7840FD
3 250 VDC 7833DF 7833EF 7833FF
5 250 VDC 7835DF 7835EF 7835FF
8 250 VDC 7838DF 7838EF 7838FF
10 250 VDC 7840DF 7840EF 7840FF
 STANDARD TRIP, INSTANT-RESET, SELF-RESET LOR/SR STANDARD TRIP, TIME-DELAY RESET,SELF-RESET LOR/SR

DECKS RESET COIL VOLTAGE CATALOG NUMBERS with TRIP COILS
DECKS RESET COIL VOLTAGE CATALOG NUMBERS with TRIP COILS COIL D COIL E COIL F COIL G COIL D COIL E COIL F COIL G
3 125 VDC 7843DD 7843ED 7843FD 7843GD 3 125 VDC 7853DD 7853ED 7853FD 7853GD
5 125 VDC 7845DD 7845ED 7845FD 7845GD 5 125 VDC 7855DD 7855ED 7855FD 7855GD
8 125 VDC 7848DD 7848ED 7848FD 7848GD 7 125 VDC 7857DD 7857ED 7857FD 7827GD
 HIGH-SPEED TRIP, INSTANT RESET,SELF-RESET LOR/SR HIGH-SPEED TRIP,TIME-DELAY RESET, SELF-RESET LOR/SR

COIL D COIL E COIL F COIL D COIL E COIL F
3 125 VDC 7863DD 7863ED 7863FD 3 125 VDC 7873DD 7873ED 7873FD
5 125 VDC 7865DD 7865ED 7865FD 5 125 VDC 7875DD 7875ED 7875FD
8 125 VDC 7868DD 7868ED 7868FD 7 125 VDC 7877DD 7877ED 7877FD
DECKS RESET COIL VOLTAGE CATALOG NUMBERS with TRIP COILS
COIL A COIL B COIL C COIL D COIL E COIL F COIL G COIL H COIL K
3 24 VDC 7823AA 7823BA 7823CA 7823DA 7823EA 7823FA -- -- 7823KA
5 24 VDC 7825AA 7825BA 7825CA 7825DA 7825EA 7825FA -- -- 7825KA
8 24 VDC 7828AA 7828BA 7828CA 7828DA 7828EA 7828FA -- -- 7828KA
3 48 VDC 7823AC 7823BC 7823CC 7823DC 7823EC 7823FC -- -- 7823KC
5 48 VDC 7825AC 7825BC 7825CC 7825DC 7825EC 7825FC -- -- 7825KC
8 48 VDC 7828AC 7828BC 7828CC 7828DC 7828EC 7828FC -- -- 7828KC
3 125 VDC 7823AD 7823BD 7823CD 7823DD 7823ED 7823FD 7823GD -- 7823KD
5 125 VDC 7825AD 7825BD 7825CD 7825DD 7825ED 7825FD 7825GD -- 7825KD
8 125 VDC 7828AD 7828BD 7828CD 7828DD 7828ED 7828FD 7828GD -- 7828KD
3 250 VDC 7823AF 7823BF 7823CF 7823DF 7823EF 7823FF -- 7823HF 7823KF
5 250 VDC 7825AF 7825BF 7825CF 7825DF 7825EF 7825FF -- 7825HF 7825KF
8 250 VDC 7828AF 7828BF 7828CF 7828DF 7828EF 7828FF -- 7828HF 7828KF
