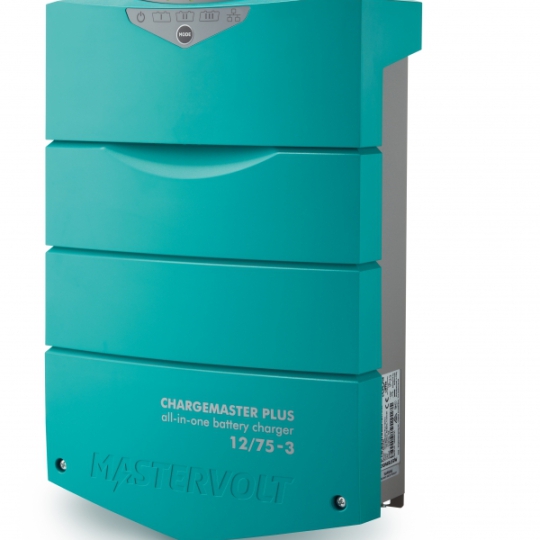

Sạc ắc quy Mastervolt ChargeMaster Plus 12/75-3 Code 44310755 Tủ nạp điện tự động Part No: 44310766 Serial No : LD17F0397 Chargemaster 12/75-3
Sạc ắc quy Mastervolt ChargeMaster Plus 12/75-3 Code 44310755 Tủ nạp điện tự động Part No: 44310766 Serial No : LD17F0397 Chargemaster 12/75-3
Communication & monitoring | ||
Communication interfaces | MasterBus, CZone, NMEA | |
General specifications | ||
Nominal output voltage | 12 V | |
Max. output current primary output | 75 A | |
Smart In-/Output output voltage | 12 V | |
Smart In-/Output output current | 5-40 A (adjustable) | |
Smart In-/Output input current | max. 40 A | |
Total charge current | 75 A at 14.4 V | |
Max. AC current (230 V / 120 V) | 6.5 A / 13 A | |
Number of battery outlets | 3 (max.) | |
Battery bank size | 320-800 Ah | |
Nominal input voltage | 120/230 V (80-275 V) 50/60 Hz | |
AC connection | screw terminals, suitable up to up to 6 mm² | |
Power supply mode | yes | |
Galvanic isolation | yes | |
Display/read-out | LED display | |
Dimensions, hxwxd | 384 x 250 x 127 mm 15.1 x 9.8 x 5.0 inch |
|
Weight | 5.9 kg 13.0 lb |
|
Compliance | CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR | |
Technical specifications | ||
Charge characteristic | IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option | |
Temperature compensation | -30 mV/°C / -17 mV/°F; temperature sensor included | |
DC voltage compensation | through automatic compensation or MasterShunt | |
Power consumption (DC side) | < 2 mA (MasterBus off) | |
Current Control function | yes, through MasterBus or CZone | |
Power factor control | > 0.98 | |
Temperature range (ambient temp.) | -25 °C to 80 °C, derating < 0 °C and > 40 | |
Cooling | vario fan | |
Protection degree | IP23, vertical mounting | |
Protections | over-temperature, overload, short circuit, high/low battery voltage, ignition protection | |
Charger Status Interface (alarm contact) | yes, using a Multipurpose Contact Output (code 77030500) |
