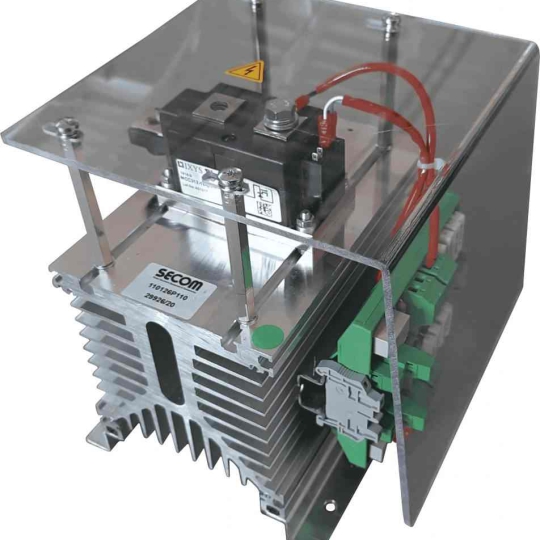

In the table below is showed the detailed electrical and mechanical characteristic of the crowbar. The  detailed mechanical drawing can be requested.
Current Voltage Dimension "A" Component
20 A 800 V 120 110126P464 SECOM Low Voltage Crowbar
60 A 600 V 120 110126P532 SECOM Low Voltage Crowbar
60 A 800 V 120 110126P470 SECOM Low Voltage Crowbar
60 A 1000 V 120 110126P549 SECOM Low Voltage Crowbar
100 A 300 V 180 110126P465 SECOM Low Voltage Crowbar
125 A 400 V 180 110126P466 SECOM Low Voltage Crowbar
350 A 1000 V 180 110126P523 SECOM Low Voltage Crowbar
200 A 1100 V 180 110126P544 SECOM Low Voltage Crowbar

50 A 650 V 120 110126P456 SECOM Low Voltage Crowbar
60 A 650 V 120 110126P461 SECOM Low Voltage Crowbar
60 A 900 V 120 110126P475 SECOM Low Voltage Crowbar
200 A 800 V 180 110126P457 SECOM Low Voltage Crowbar
350 A 1000 V 180 110126P522 SECOM Low Voltage Crowbar
30 A 800 V 120 110126P539 SECOM Low Voltage Crowbar
30 A 600 V 120 110126P608 SECOM Low Voltage Crowbar
250 A 1000 V 180 110126P637 SECOM Low Voltage Crowbar
90 A 800 V 180 110126P646 SECOM Low Voltage Crowbar
