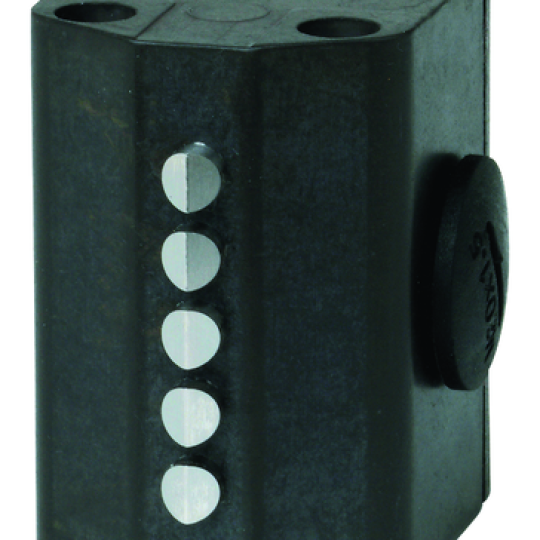

SN05D08-552-M (ORDER NO. 085905) Euchner Vietnam
Series SN... 8 mm, mechanical
Plunger spacing 8 mm
Upright housing, without flange
Degree of protection IP67 according to IEC 60529
-
Liên hệ
-
996
- Thông tin sản phẩm
- Bình luận
Electrical connection ratings
| Connection cross-section | 0.14 ... 1.0 mm² |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Rated insulation voltage Ui | 250 V |
| Short circuit protection according to IEC 60269-1 | 6A gG |
| Switching current | |
| min. at DC 24V | min. 10 mA |
| thermal rated current Ith | 6 A |
| Utilization category | |
| AC-15 | 2A 230V |
| DC-13 | 2A 24V |
Mechanical values and environment
| Actuating element | Chisel plunger |
| Actuating force | min. 15 N |
| Ambient temperature | -5 ... +80 °C |
| Approach speed | 0.01 ... 20 m/min |
| Connection | |
| 2 x | M20 x 1.5 |
| Degree of protection | IP67 |
| Design | upright |
| Installation orientation | any |
| Material | |
| Housing | Die-cast aluminum, anodized |
| Contact | Silver alloy, electro-gold plated |
| Mechanical life | 10 x 10⁶ |
| Number of changeover contacts | 5 |
| Number of switching elements | 5 |
| Plunger spacing | 8 mm |
| Switching principle | Snap-action switching contact |
| Tightening torque | |
| Switching element screw terminal | max. 0.2 Nm Hexagon socket AF 1.3 mm |
