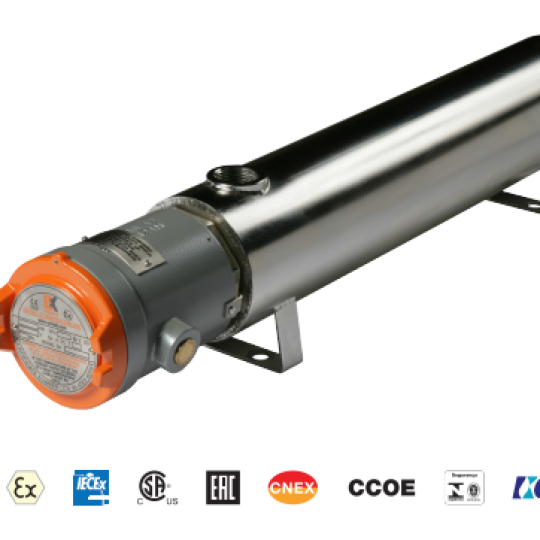

Unit FP-MLH6L(M) Item Number 028828.01.02

Capacity 6kW – client specified

Voltage 415V, 3Ph, 50/60Hz (4-W STAR)

Protection ATEX Certified Ex II 2 G Ex d IIC T3 Gb Zone 1 & 2 - LCIE 99 ATEX 6006X

Cable Entries 1 x M20 & 1 x M25 c/w temporary plugs

Enclosure Lightweight Cast Aluminium Power coated, weatherproof to IP66

Elements 3 off 8mm Low watts density Incoloy 825 Sheathed embedded rod type

Vessel Insulated Mild Steel

Connections 1” BSPP Inlet & Outlet

Watts Density 5.6W/cm²

Controls (VAC) (S1) 1 off Auto Reset Control (SPDT) Thermostat range +7/+100ºC max

process set point +65°C (5-7°C hysteresis)

(S2) 1 off Manual Reset Limit Thermostat set at +80°C

Design Pressure 5 Bar g

Design Code Sound engineering Practice (SEP)

Ambient temperatures from -40°C to +40°C
