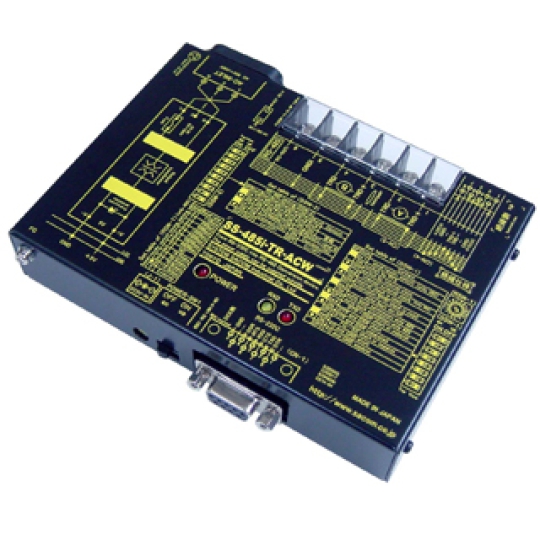

-"RS232C⇔RS485 insulation converter terminal block type AC90V-240V specification" -Insulation

type conversion unit that bidirectionally converts the data output by RS232C to RS485 (half-duplex) signal.

-It can also be used as a converter for connecting a personal computer (RS232C) to a device output by RS485.

-Equipped with Dsub9P on the RS232C side connector. Two types of terminals, terminal block (6P) and RJ-45, are mounted on the RS485 side connector, greatly improving workability and on-site adaptability. Furthermore, 5V power can be supplied to external devices from the connector.

-The RS485 signal line is equipped with an overvoltage protection circuit using a surge absorber.

-To facilitate the connection of multiple units, the terminal block on the RS485 side is equipped with two sets of A and B terminals.

・ Modbus is available.
