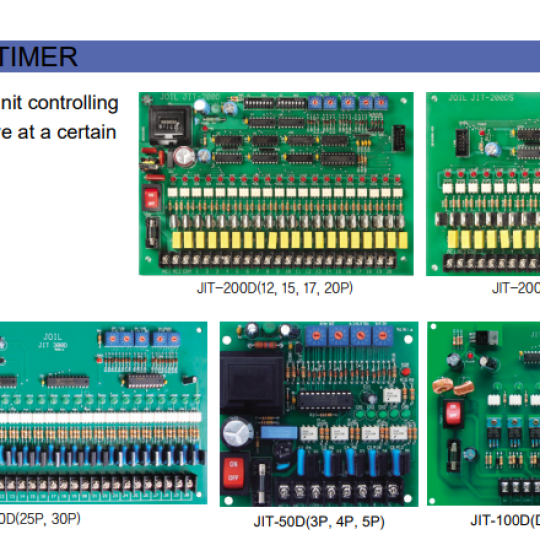

Precautions for Installation of TIMER

●

●

●

In timer installation, be sure to install it apart from high-tension lines and electromagnetic field (the cause of malfunction).

Upon power connection, check input and output.

Check on time, off time & on count and turn the power on.

Upon use of multi-span, connect each p, w, b to each flat connector and for the power, be sure to separate R & S and

connect to main timer & secondary timer the same way(if R and S are switched, P.W.B circuit rupture & malfunction

may be caused)

Upon use of multi-span, 10p and 20p should be used for the main timer.

The dirt and moisture should be prevented infiltration in the timer box.

Off Time: up to 0~99sec

On Time: up to 0.1~0.9sec(possible until 0.05sec by order spec)

On Count: single-span operation 1~30 points, multi-span operation 1~100 points.
