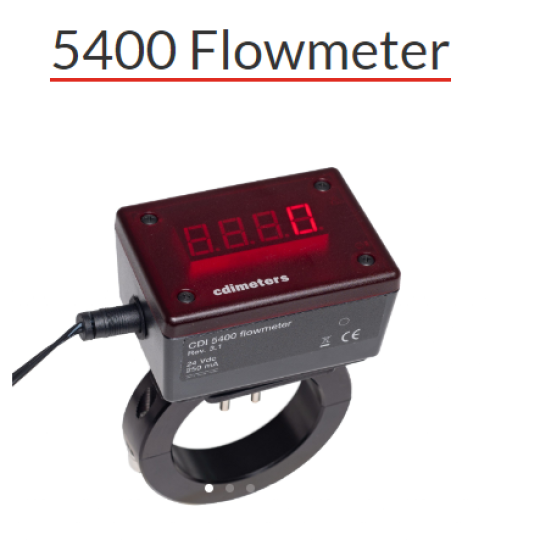

The CDI 5400 clamps onto a pipe, with two flow-sensing probes projecting into the pipe through 3/16-in. drilled holes. It seals directly to the pipe; no cutting or welding is required for installation. Because each flowmeter is made and calibrated for a specific size of pipe, the digital display indicates flow directly, with no setup or adjustment

Features

Easy to install

Display rotates to facilitate use on horizontal or vertical pipes

No moving parts

Weather resistant and surge protected

Milliamp output

Pulse output convertible to threshold output

User-configurable scaling, filtering and units of measure

Optional wired outputs for networking

The CDI 5400 is similar to the CDI 5200, except that it has its probes mounted side-by-side in a single ring, its display can rotate to accommodate pipe orientation, and it is built for larger pipe sizes. Like the 5200, it is a thermal mass flow meter in which one probe senses the air temperature and the other is maintained ten degrees above the air temperature. It has the same milliamp and pulse outputs, the same large, bright display, and optional wired outputs.

The CDI 5400 is commonly used for monitoring of compressor-room output and distribution lines in medium to large-sized facilities. It is also used for point-of-use monitoring in industrial processes that use large amounts of compressed air.
