ELMAG-200

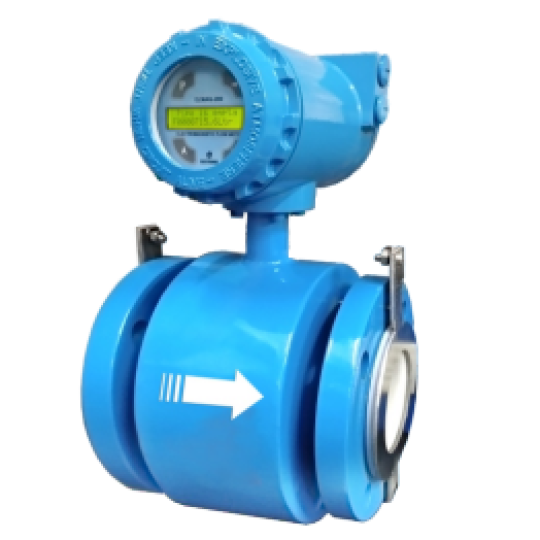

ELMAG-200 Series : Full Bore Electromagnetic Flow Meter

Line Size : 25 NB Bore

Material of construction : PTFE LINING SS 316 Flange with SS 316 Coil

Housing

Electronics : Local

Electrode Material : Tantalum

Output : 4-20mA DC

Power Supply : 230 V AC +/- 10% 50 Hz

Communication Port : None

Remote Cable Length : None

Service : Acid 33% HCL, Measuring flow : 0-3 m3/hr @ velocity 1.70 m/s, Flow range : 0.8836 to 10.60 m3/hr @ Velocity 0.5 to 6 m/s (0.3 m/s minimun required velocity), Process Pressure : 10 kg/cm² max, Process Temperature :120°C, Process Connections : 1" DIN 2576 Flanged, Display: 16 x 2 LCD - 4 digit for Flow Rate & 8 digit for Totalised Flow, Conductivity : > 5 µs/cm, Mounting: Vertical
