807R25D 72114 155 1600

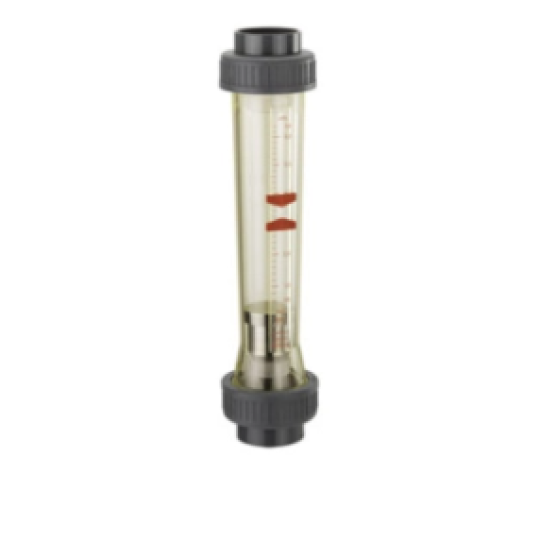

Variable area flowmeter

Item number: 88044984

Description

Type 807 Variable area flowmeter, 1.4571 (316Ti) stainless steel float, (series 800)

RoHS conformance R Conformance to RoHS

DN 25 DN 25

Body configuration D Straight through tube

Connection type 7 Union end with DIN insert (socket)

Metering tube material 21 PA, transparent

O-ring material 14 EPDM

Union material 1 Insert PVC-U, union nut PP grey

Metering tube size 55 Conus 55

Measuring range 1600 Maximum measuring range of flowmeter

Medium Wasser Water

Temperature 20°C Medium temperature

Scale minimum 150 Lower measuring range limit of scale

Scale maximum 1600 Upper measng range limit of scale

Unit l/h Litres per hour
