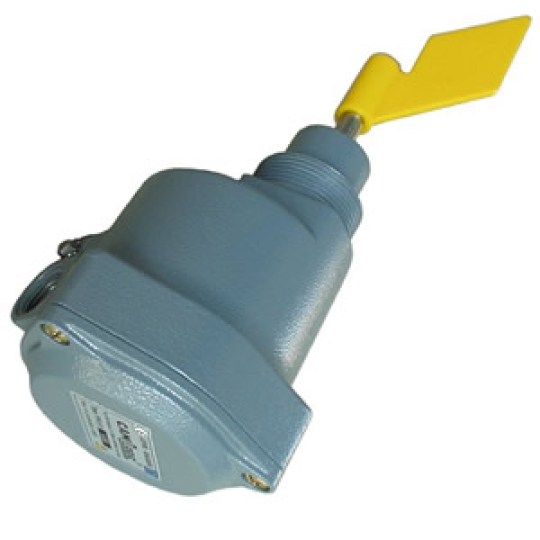

Small-sized bladed level particularly suitable for use on small tanks or batching cells. Versione with male thread 1"1/2 Gas.

Construction is made in compliance with the regulations in force in the European Union.

Certificate: TÜV IT 13 ATEX 070
Marking: Ex II 1/2 D Ex ta/tb IIIC T85°C IP65 Da/Db

• Die-cast aluminium casing, protection IP65.
• Stainless steel shaft on ball bearings.
• Available power supplies:
  • V.110/220 a.c. 50/60 Hz.
  • V.24/48 a.c. 50/60 Hz.
  • V. 24 d.c.
• Use contact capacity: 5 A at 250 V AC.
• Output speed (screw shaft): 1,5 rpm.
• Maximum operational pressure: 1,1 bar.
• Ambient temperature range: -20 to +70°C.
