BM26A-1000 PN40 / 300lbs

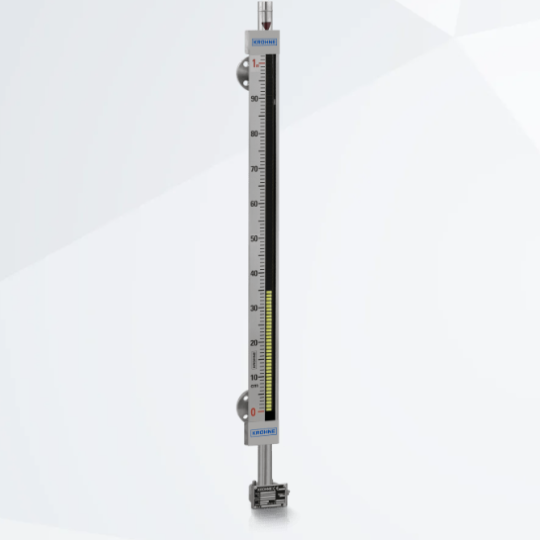

Magnetic Level Indicator (MLI)

for basic liquid applications

Type BM26A-1000 (PN40 / 300lbs) KROHNE

Regional directives Worldwide

Approval Without

Industry / Safety Without

Construction PED / EN13445

Orientation Side (bottom & top)

Application Level

1000...1049 Kg/m3 (62,43...65,48 lbs/ft3)

Process temperature -70°C...+150°C

(-94°F...+302°F)

Material 1.4401/1.4404

Pipe Ø 42.4 x 2

Float PN40 316L Ø32

>950 Kg/m3

Process connection NPS 1" 150lbs

(Flat flange)

RF ASME B 16.5

Low Drain 1" 150lbs

RF ASME B 16.5

(Flat flange)

High Vent Without

Gasket PTFE

Graduation Scale / mm

Indication Bicolor flap

White and red

Transmitter type LT40 (add VFPT sub-position)

Switch Without

Tag plate / adjust.cert Without

********************

Design Temperature Ts = -70°C / -94°F

+ 150°C / 302°F

Design Pres. Ps=-1 ... 14.8 Barg

PT 27.2 barg

PED Specif. PED/G1/III

Construction code EN 13445 2021

********************

APPLICATION DATA

BM26A C-C Length (mm) 600 mm

Measuring Length (mm) 600 mm

medium Condensate water

density 1 g/cm3

temperature 20 °C

VFPA40W00111U5DA3HAK04L1000000

LT40 Reed-chain level transmitter

Type LT40 KROHNE

Regional directives Worldwide

Approval Without

Industry / Safety Without

Compact version

Housing Aluminium

IP rating IP66/IP68 0.15 barg

Bottom mounted

Power supply Two wires

Output 4 ... 20mA- passive (HART)

Cable entry M20x1.5

Cable gland Plastic black

With display

Resolution capacity ±10 mm

Calibration certificate Without

Signal cable Without

Collar for Ø42.4mm pipe

APPLICATION DATA

ML report from BM26 (mm) 600 mm

medium Condensate Water

density 1 g/cm3

temperature 20 °C

VFPT40W000322410001
