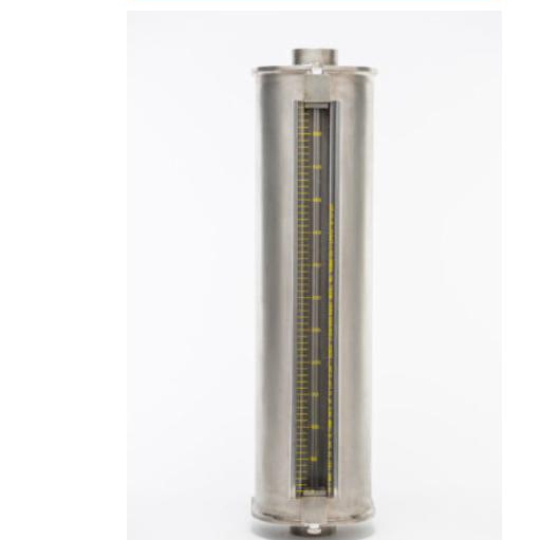

Calibration Pots

Applications

Calibration Pots provide an extremely accurate reading of the pumps output for a wide range of flow rates. The gauge is installed between the suction side of the chemical pump and the chemical storage tank. The flow rate is checked by closing the valve between the tank and gauge and observing the liquid level change in the calibrated scale for one minute (other test times available upon request).

Features

The Calibration Pot is often the preferred option for offshore installations due to the robust design. The totally enclosed construction ensures maximum safety.

Provide a means for accurately checking the feed rates of a chemical metering pump.

Individually hand calibrated to assure maximum accuracy.

Options

Manufactured in 316 Stainless Steel, Painted Carbon Steel, Hastelloy C-276 and Alloy 20 as standard material options. Other materials including PVC and CPVC available to meet your chemical resistance requirements.

Customization is always and option. Give us your design criteria and we will design a unit to fit your needs and specifications.
