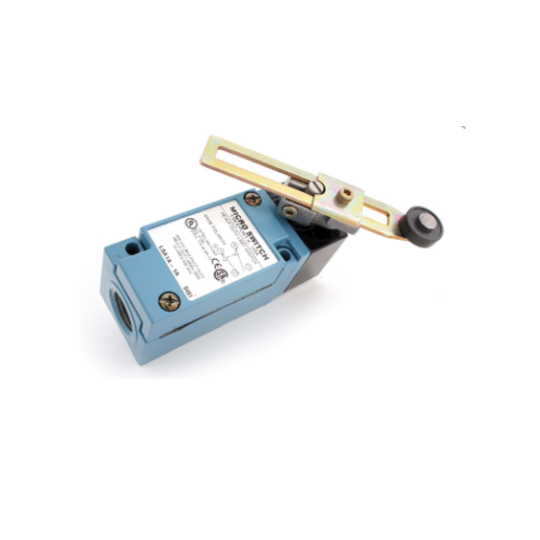

FEATURES

• NEMA 1, 3, 4, 4X, 6, 6P, 12, 13 and IP65/66/67environmental sealing

• NEMA/IP sealing features twin shaft seals for an extra measure of protection

• Rugged, corrosion-resistant zinc head and body arephosphate treated and epoxy coated

• Diaphragm seal between head and body provides an extra measure of protection

• Multiple connectivity options for international applications

• Fluorosilicone seals available for low temperature applications, and fluorocarbon seals available for chemically harsh environments and higher temperature applications

• Secure head-to-body retention with the head in any one of four positions 90° apart

• Self-lifting pressure plate terminals saves wiring time

• Wide variety of actuators, switch options, and head styles

• Rotary actuated heads are field adjustable for CW actuation, CCW actuation, or both

• Silver or gold-plated contacts

• Plug-in and non plug-in bodies have identical operating characteristics and are dimensionally interchangeable

POTENTIAL APPLICATIONS

• Machine tools

• Automotive machine tools

• Material handling

• Outdoor electromechanical structures

• Balers/compactors

• Conveyors

• Food and beverage

• Power plants

• Off-road equipment

• Agricultural equipment

• Valves

• Transportation hubs
