ID 383975-01

ST 1287

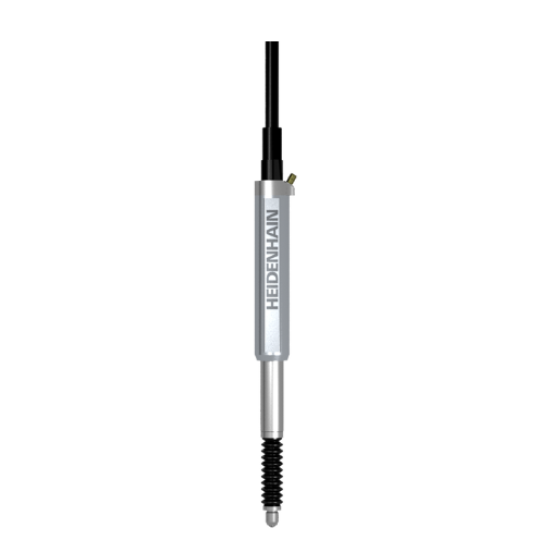

Incremental length gauge HEIDENHAIN-SPECTO

Plunger actuation

extended with compressed

air

Measuring length

12 mm

Type of guide

ball-bush guide

Reference mark position

5 mm

Accuracy grade

1.0 µm

Electrical connection

Connector M23, male, 12-pin

Connecting direction

axial

Pin configuration

D510107

Cable type

PUR Ø 5.1 mm

Cable length

1.50 m

Output signal

sinusoidal voltage signals

(1 Vpp)

Reference pulse width

360°

Grating period

20.000 µm

Power supply

5V+-10%

Protection rating

IP64 (EN60529)

Operating temperature

+10/+40 °C
