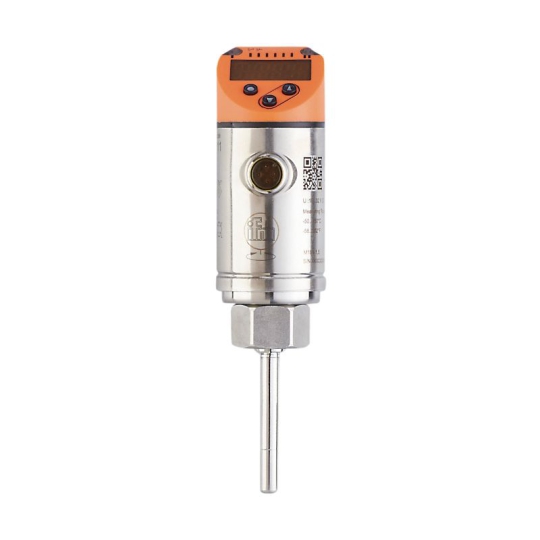

Electronic temperature sensor; 1 x Pt 1000; (to DIN EN 60751, class A); PNP/NPN; switching signal; analogue signal; IO-Link; (configurable); Installation length EL 45 mm; Measuring range -50...150 °C / -58...302 °F; Factory setting -40...150 °C / -40...302 °F; Pressure rating 300 bar; M18 x 1,5 internal thread; M12 Connector

Very large temperature evaluation range

Programmable switching output with IO-Link and scalable analogue output

Intuitive and user-friendly 3-pushbutton control

Red/green display for clear identification of the acceptable range

Clearly visible LEDs for switching status indication
