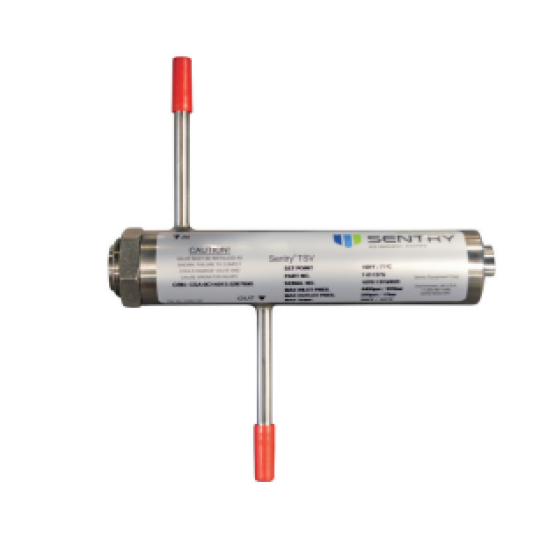

While maintaining the proper temperature of your samples is ideal, it doesn't always occur. The TSV Thermal Shutoff Valve was designed with this in mind.

This valve ensures that you can shut down sample flow quickly when loss of coolant or sample flow surges occur. Withstanding temperatures up to 250°F (121°C), our Hi-Temp valve completely closes when sample temperature reaches up to 203°F (90°C) – all without operator intervention. The sensoe/actuator is directly exposed to the sample medium. High temperatures actuate the device in less than five seconds. Some of the causes og high temperatures include loss of cooling water, insufficient cooling water pressure or flow, high cooling water temperature, high sample flowo rate, a ruptured coil in the sample cooler, or a fouled or plugged sample cooler.

After each trip, an operator must manually reset it to ensure additional process safety and time for error correction. Each time the temperature shutoff valve is closed it will have a red visual indication of the postion and can even be added to an optional remote alarm via a switch.

Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry 7-01137S,  Sentry  7-01137J, Sentry 7-01137H , Sentry 7-01137M, Sentry 7-01137G, Sentry 7-01137L, Sentry  7-01137P

Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve 7-01137S
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry  7-01137S 104°F (40°C) (P/N 7-01137F Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve 7-01137S 109°F (43°C) (P/N 7-01137J Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry  131°F (55°C) (P/N 7-01137S Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry 7-01137H   140°F (60°C) (P/N 7-01137H Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry 7-01137M  153°F (67°C) (P/N 7-01137M Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry  7-01137G 160°F (71°C) (P/N 7-01137G Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry  7-01137L 194°F (90°C) (P/N 7-01137L Sentry )
Van bảo vệ quá nhiệt Sentry TSV Thermal Shutoff Valve Thermal Protection Valve Sentry  7-01137P  203°F (95°C) (P/N 7-01137P Sentry )
