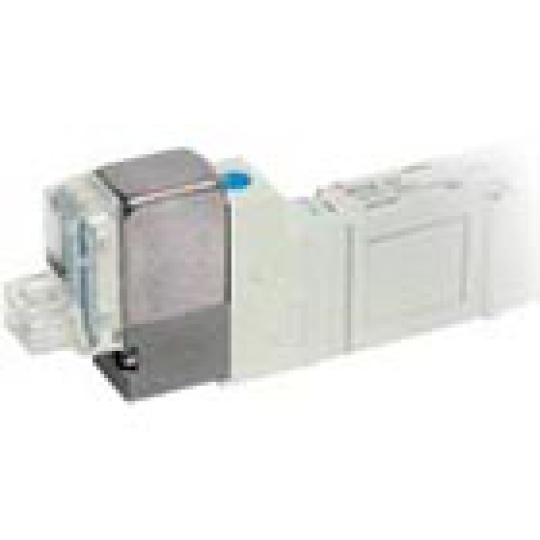

Specifications: SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit

●Combined mounting of 3 port valve and 5 port valve is possible

●Power consumption: 0.1 W (with power saving circuit)

●A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold

●Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9

Field Value Value Details

Series 5 SY5000

Type Of Actuation 1 2 Position Single

Coil Specifications - Standard

Rated Voltage 1 100 VAC

Electrical Entry D DIN Terminal

Light/Surge Voltage Suppressor - Without Light/Surge Voltage Suppressor

Manual Override - Push-turn Locking Type

A/B Port Size 01 1/8

Thread Type - Rc

Bracket F2 With Side Bracket

Made To Order - Standard

CE-compliant - -
