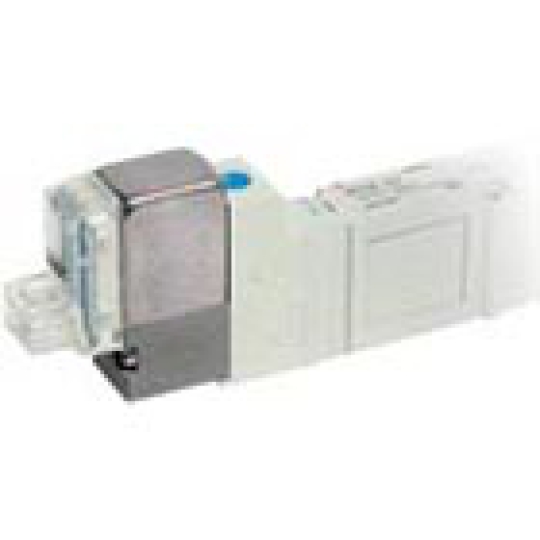

Specifications: SY3000·5000·7000·9000 Series 5 Port Solenoid Valve Body Ported/Single Unit

●Combined mounting of 3 port valve and 5 port valve is possible

●Power consumption: 0.1 W (with power saving circuit)

●A wide variety of manifold options such as aluminum body manifold, DIN rail, stacking type manifold

●Manifold type No.: SS5Y3，SS5Y5，SS5Y7，SS5Y9

Field Value Value Details

Series 7 SY7000

Type Of Actuation 1 2 Position Single

Coil Specifications - Standard

Rated Voltage 4 220 VAC [230 VAC]

Electrical Entry D DIN Terminal

Light/Surge Voltage Suppressor Z With Light/Surge Voltage Suppressor

Manual Override D Push-turn Locking Slotted Type

A/B Port Size 02 1/4

Thread Type - Rc

Bracket - None

Made To Order - Standard
