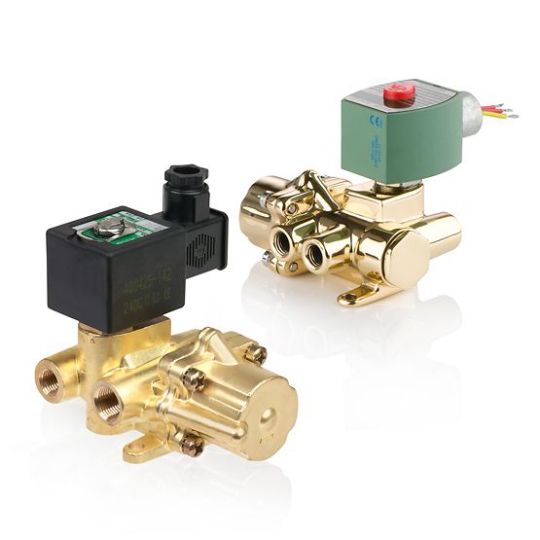

Solenoid valve; Model: WPB344A070MO; Coil: 24DC; pipe size: 1/4" NPT/orifice size: 6.4mm; Nhà SX: Emerson (Asco)

Specifications

Valve ActuationSolenoid - Direct Acting

Body MaterialBrass

MediaAir, Inert Gas, Light Oil, Water

Pipe / Port Size1/4 "; 1/2 "; 3/8 "; 3/4 "; 1 "

Port TypeNPTF

Function4 way - 4/2

FlowFrom .05-.1 Cv, From 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv, From 1.0 Cv to 2.0 Cv, From 2.0 Cv to 6.0 Cv, From .43 to .86 Kv, From .86 to 1.73 Kv, From 1.73 to 5.19 Kv

Voltage100 to 240 AC/DC Voltage Ranging, 12 to 24 DC Voltage Ranging, 125 DC Battery Charging, 110 AC, 12 DC, 120 AC, 120 DC, 24 AC, 24 DC, 24 to 120 AC/DC Voltage Ranging, 250 DC Battery Charging | 50/60

Operating EnvironmentHazardous, Indoor, Outdoor

Standards / RegulationsATEX Zone 0-20, Class I Div 1, Class I Div 2, CSA, FM, IEC Ex Zone 0-20, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL
