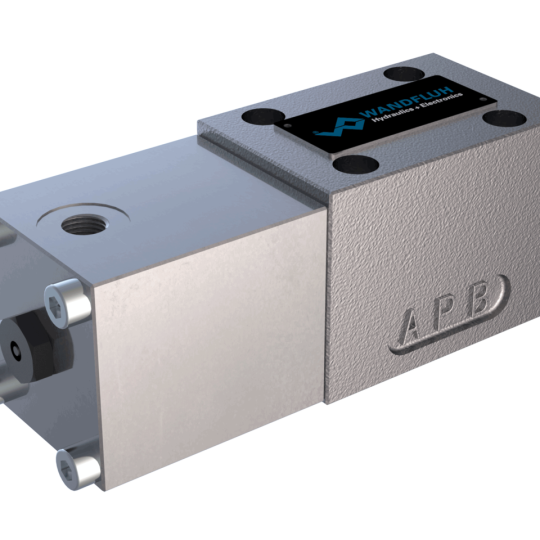

Poppet valve
Flange construction
◆ pneumatically operated
◆ 2/2-, 3/2- und 3/4-way
◆ normally open and normally closed
◆ Qmax= 40 l/min
◆ pmax = 350 bar
Direct operated 2/2-, 3/2 and 3/4-way poppet valve in flange construction. By means of the pneumatic actuation control head, the poppet valve spool is opened or closed acting against the spring.
Due to the poppet spool construction with pressure compensation on both sides, the flow through the valve is possible in both directions. The seat spool guide is sealed by means of an O-ring. The metallically sealing seat closes the valve virtually leak free.
