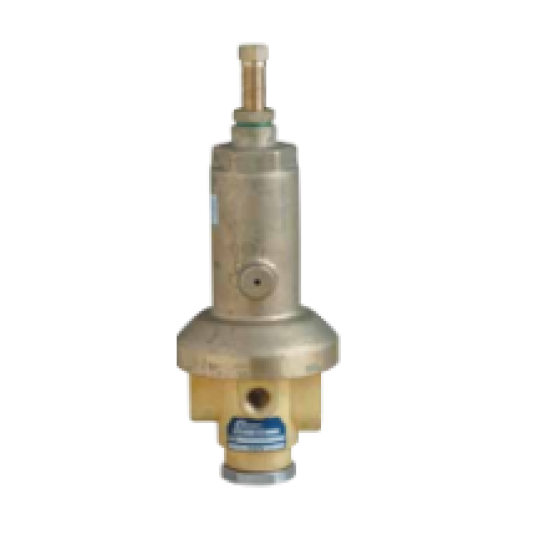

Van điều khiển Pilot Valve DOROT 66-310

DOROT CATALOG NO : P66310K05060001

PILOT-66310-QR-3W-BRASS(B)-BRASS(C)-050-ST302(S)-NR PILOT-66310-QR-3W-BRASS(B)-BRASS(C)-050(RED)-ST302(S)-NR

66-310

Multi-purpose Metal Pilot and Relay-Valve

(66-31D Differential-pressure sensing)

The 66-310 is a diaphragm actuated, spring- loaded pilot-valve that is designed for control of hydraulic-valves. The pilot valve operates either as a 2-way pilot valve or as an adjustable relay valve that is used as a selector between the common port and the two other ports. The pilot valve will vent, or pressurize or lock the hydraulic valve's chamber as a factor of the relation between the regulated pressure and the adjusted set-value. The 66-310 pilot-valve can be used for implementing a wide range of hydraulic control-functions.
