Media Air, Inert Gas

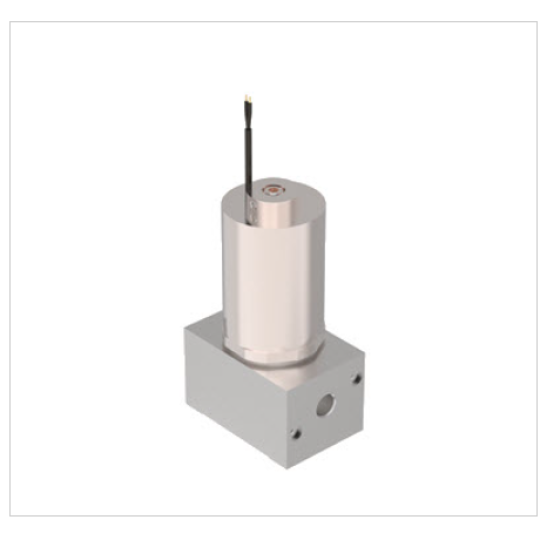

Valve Function Single Solenoid Proportional, Normally Closed

Piping Type Inline, Direct Piping

Port Size 1/4 PIPE

Number of Ports 2 ports

Number of Positions Variable

Approx Size (in) HxWxD 5 x 2 x 2

Type of Operation Direct Acting

Flow - SCFM @ pressure 7

Flow - LPM @ pressure 200 @ 11

ESEOD (orifice) - in (mm) 0.156 (0.006)

Flow Coefficient (Cv) 0.441

Lubrication Not required

Response Time per Step (ms) 20

Ambient Temperature Range (⁰F) 40 to 120

Wetted Materials Anodized Aluminum, SST,Silicone, EPDM

Weight (oz) 33.0

Electrical Entry 10" Lead Wires

Maximum Voltage 12 Volts

Power Consumption (w) 6.2

Maximum Flow (LPM) 200

Callibrated Pressure Setting (psi) 11.0

Input current for full flow (mA) 600

Nominal Resistance @ 72⁰F (Ohms) 16.0
