Van phao Float valves NV 16e Mankenberg NV16eZw100 * 16 100 -16EG NV16eZw 65 * 16 50 -16EG

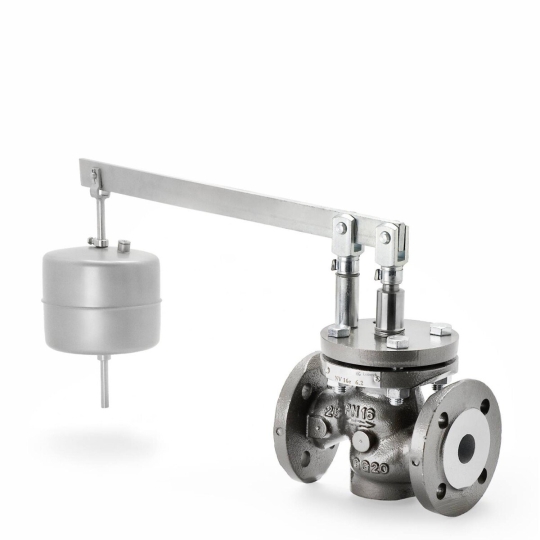

The float valve NV 16e

is a pipeline valve for horizontal or vertical flow. The valve cone is fitted with a soft seal.

The valves are fitted with a float bar on which a float featuring an inner tube is mounted. By changing the position of the float on the bar the required liquid level is infinitely variable.

Mã sản phẩm:
NV 16e Mankenberg
Giá:
Liên hệ
Lượt xem:
412

Thông tin sản phẩm
Bình luận

Van phao Float valves NV 16e Mankenberg Float Valve 16eZw DN 100
Van phao Float valves NV 16e Mankenberg Model: NV16eZw100 * 16 100 -16EG
- single-seated balanced globe valve
- KVS-value 100 m³/h, temperature -10 up to +130°C
- operating pressure 0 - 16 bar, outlet pressure 0 bar
- vessel pressure 0 bar
- installation: horizontally, closing withrising float
- body made of GGG-40, outsidepriming coated, PN 16
- inlet flange: dimensions EN 1092-2/21-2/PN 40, drilled PN 16
- outlet flange: dimensions EN 1092-2/21-2/PN 40, drilled PN 16
- face to face length 350 mm
- seat made of Cr-steel
- cone seal EPDM, body gasket EPDM
- float rod 1 m long made of CrNiMosteel; article no.: 91990096
- cylindrical float type 8, D=305/305mm made of CrNiMo-steel; article no.: 91810086
Van phao Float valves NV 16e Mankenberg Float Valve 16eZw DN 65 Model: NV16eZw 65 * 16 50 -16EG
- single-seated balanced globe valve
- KVS-value 50 m³/h, temperature -10 up to +130°C
- operating pressure 0 - 16 bar, outlet pressure 0 bar
- vessel pressure 0 bar
- installation: horizontally, closing with rising float
- body made of GGG-40, outside priming coated, PN 16
- inlet flange: dimensions EN 1092- 2/21-2/PN 40, drilled PN 16 (8 holes)
- outlet flange: dimensions EN 1092- 2/21-2/PN 40, drilled PN 16 (8 holes)
- face to face length 290 mm
- seat made of Cr-steel
- cone seal EPDM, body gasket EPDM
- float rod 1 m long made of CrNiMosteel; article no.: 91990096
- cylindrical float type 8, D=305/305 mm made of CrNiMo-steel; article no.: 91810086
