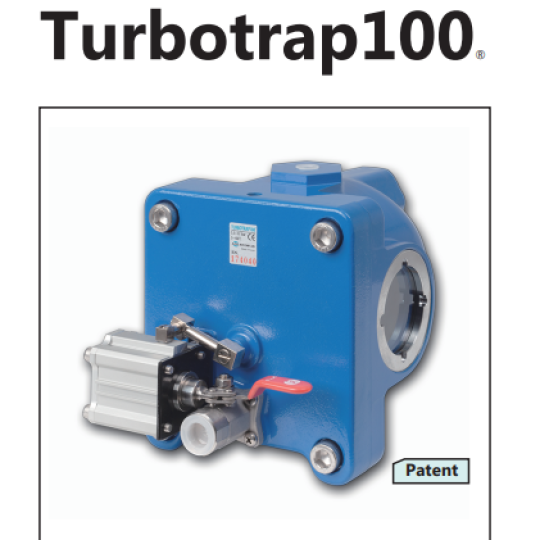

Van xả khí tự động Turbotrap100 ACE Korea Model Turbotrap100L ACE, Model Turbotrap100 ACE, Model Turbotrap100H ACE
Zero air loss and ball valve type automatic air trap in compressed air system.
1. Level-controlled float provides zero air loss and no external power supply.
2. Big orifice(10.1Ø) allow for safe discharge of dirty particles.
3. Only two moving parts ensure long durability and minimal maintenance.
4. Thanks to the dual sight glasses, you can see inside the operation, which makes management easier.
5. Test handle can be also mannually moved.
6. Major internal parts made of stainless steel
-
Turbotrap100 ACE
-
Liên hệ
-
81
- Thông tin sản phẩm
- Bình luận
Van xả khí tự động Turbotrap100 ACE Korea Model Turbotrap100L ACE, Model Turbotrap100 ACE, Model Turbotrap100H ACE
Specification
| Size(mm) | Operating pressure (bar) |
Temperature (C) |
Volume (Liter/cycle) |
Application (HP of Compressor) |
Weight (kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|
| Inlet | Outlet | A | B | C | ||||||
| Van xả khí tự động Turbotrap50L ACE | 3/4" | 3/8" | 198 | 122 | 138 | 0.2~1.5 | 0~60 | 0.6 | ~2,500 | 2.4 |
| Van xả khí tự động Turbotrap50 ACE | 1.5~10 | |||||||||
| Van xả khí tự động Turbotrap50H ACE | 10~16 | |||||||||
| Van xả khí tự động Turbotrap100L ACE | 1" | 1/2" | 228 | 150 | 172 | 0.2~1.5 | 0~60 | 1.2 | ~3,500 | 3.6 |
| Van xả khí tự động Turbotrap100 ACE | 1.5~10 | |||||||||
| Van xả khí tự động Turbotrap100H ACE | 10~16 | |||||||||
CAUTION :
Order the model name according to the pressure to apply. In addition, the pressure of the control air entering the cylinder should be 4 to 6 bar, no matter what the general pressure is, whether it is low (L) or high (H). The control pressure range shall be matched to the regulation and the quality of the air shall be dried and cleaned. Be careful if you use moist and contaminated air, it can not be guaranteed a proper life.
Sight glass to check its operation
The sight glass enables the operator to check whether real-time turbo traps are operational or if condensate flows well from each point to the Turbotrap. The sight glass is automatically supplied with Turbotrap 100 and optional with Turbotrap 50.
Mounting bracket
When using this mounting bracket, installation of Turbotrap can be ensured. In addition, if there is a vibration at the point on the site where condensate is generated, the inlet must be used as a high-pressure hose or as a flexible tube.
