Description

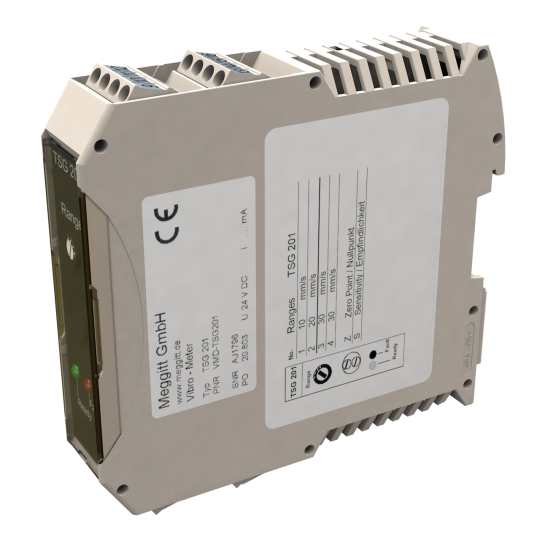

The one-channel transmitter TSG 201 measures with the

assistance of piezoelectric acceleration transducers the

true RMS value of the vibration velocity in accordance with

ISO 10816-1.

Specifications

Measuring range:

The ranges 10 mm/s rms, 20 mm/s rms, 30 mm/s rms, are

selected by means of a rotary switch at the front panel. A

further measuring range can be chosen (optional).

Filter:

10 …1000 Hz (-10% Deviation at cut-off frequency)

Band Pass, 20 dB/Decade

Internal Control:

The fault alarm is setting if:

- An interruption or a short circuit in the transducer or in

the cable connections is present.

Fault indication:

The message is as 2-mA-Signal from the analog output

and as a red LED indicator at the front panel .

One Analog outputs (Current):

4 to 20 mA, max. load 500 Ohm
