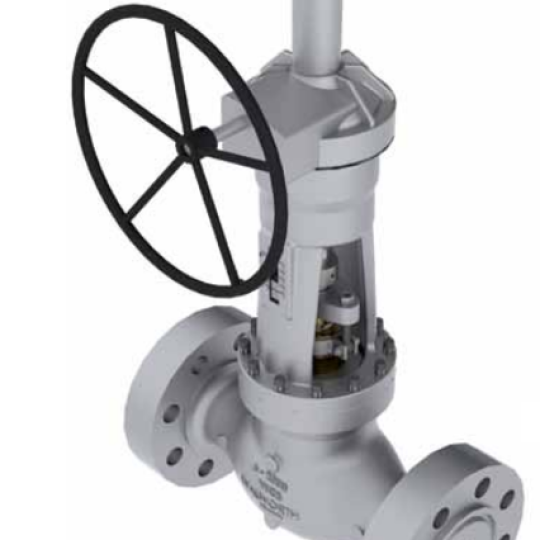

WALWORTH PRESSURE SEAL GLOBE VALVES CLASS 2500 (GEAR OPERATED) Ordering code 5563YPSWE-HF-WCB-BS
Van tay đường xả downcomer 5563YPS= Globe 2500 # Y Pattern P. Seal
DN100,
Pressure: 20.1 Mpa,
Temp.: 400 ºC
Figure update:
5563YPSWE-HF-WCB-BS
Type: Globe "Y" Pattern valve
Size: 4", Class 2500#, End: Butt Weld Ends
Operator: BS= Bare Stem with ISO Flange
-
5563YPSWE-HF-WCB-BS
-
Liên hệ
-
1897
- Thông tin sản phẩm
- Bình luận
Design Features
• in accordance with ASME B16.34.
• WE short pattern; RF & RTJ long pattern as per ASME B16.10.
• Rising Stem.
• Guided plug type disc.
• From 2” and up Gear Operated. operated.
• End to end dimensions as per ASME B16.10.
• Flange dimensions as per ASME B16.5.
• Weld end dimensions as per ASME B16.25.
Catalog figure No. ID plant figure No. Type of ends
5563PSWE 5563PSWE Buttweld
5563PSRF 5563PSF Flanged raised face
5563PSRTJ 5563PSRJ Flanged ring type joint
https://walworth.com/sites/default/files/pressure_seal_2017_1_en_0.pdf
