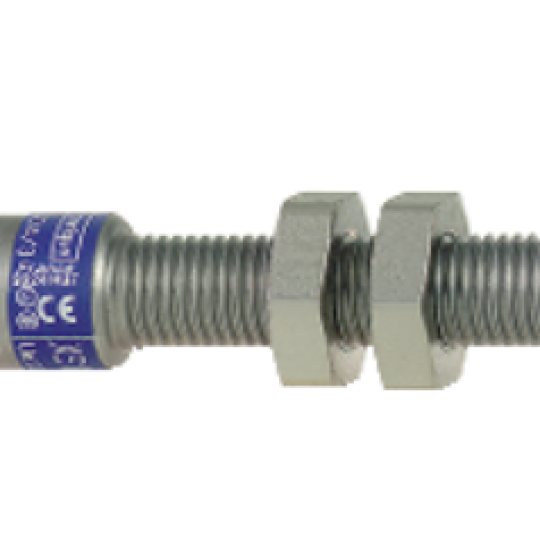

XS1M08PC410D Cảm biến từ 12..24VDC - M12
-
XS1M08PC410D
-
Liên hệ
-
780
- Thông tin sản phẩm
- Bình luận
| Manf. Part No.: | XS1M08PC410D |
| Length of Sensor: | 61mm |
| Sensor Diameter: | 8mm |
| Mounting Style: | Concise |
| Switching Distance: | 1.5mm |
| Suitable for Safety Functions: | No |
| Switch Function: | Other |
| Type of Switching Output: | PNP |
| Electrical Connection: | Connector M12 |
| No. of Semiconductor Outputs with Signalling Function: | 2 |
| No. of Contact Energized Outputs with Signalling Function: | 0 |
| No. of Protected Semiconductor Outputs: | 2 |
| No. of Protected Contact Energized Outputs: | 0 |
| Actuation Type: | Metallic Target |
| Type of Interface: | None |
| Type of Interface for Safety Communication: | None |
| Housing Construction: | Cylinder, screw-thread |
| Housing Coating: | Nickel-plated |
| Cascadable: | No |
| Category According to EN 954-1: | 1 |
| SIL According to IEC 61508: | None |
| Performance Level acc. to EN ISO 13849-1: | None |
| Max. Output Current at Protected Output: | 200mA |
| Supply Voltage: | 10V - 36V |
| Rated Control Voltage Us at AC 50HZ: | |
| Rated Control Voltage Us at AC 60HZ: | |
| Rated Control Voltage Us at DC: | 12V - 24V |
| Voltage Type: | DC |
| Switching Frequency: | 5000Hz |
| Monitoring Function for ownstream Switching Devices: | No |
| Housing Material: | Metal |
