M/31082

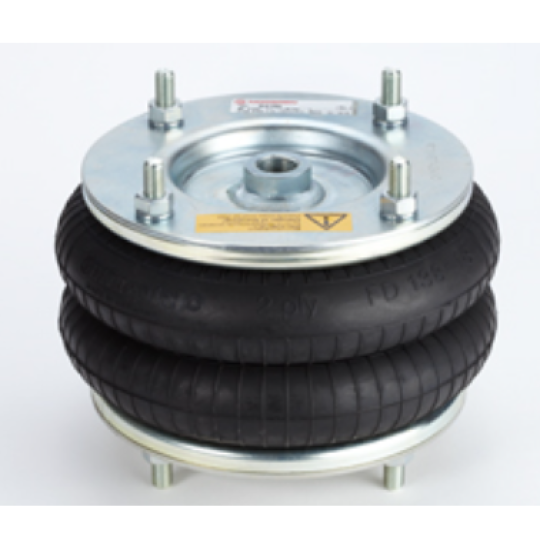

Air bellow, single acting, 8" diameter, 175mm strokeMedium Compressed Air

Operating Temperature -40 ... 70 °C, -40 ... -40 °F

Operating Pressure 0 ... 8 bar

Port Size G1/2

Nominal Diameter 8"

Number Of Convolutions 2

Stroke Length 175 mm

Magnetic/Non-magnetic Non-magnetic

Theoretical Force 17650 N

Materials - Nuts/Screws Zinc chromated steel

Certification - REACH Available on request

Certification - RoHS Compliant Available on request

Certification - WEEE NonWEEE

Classification - eClass 11 51010390

Classification - HS Code 84123100

Classification - HTS Code 8412310000

Classification - MIL Spec Unavailable

Classification - UNSPCS Code 31251504

Classification - US ECCN EAR99

Country of Origin France

Dimensions - Height 125 mm

Range M/31000

Brand Norgren
