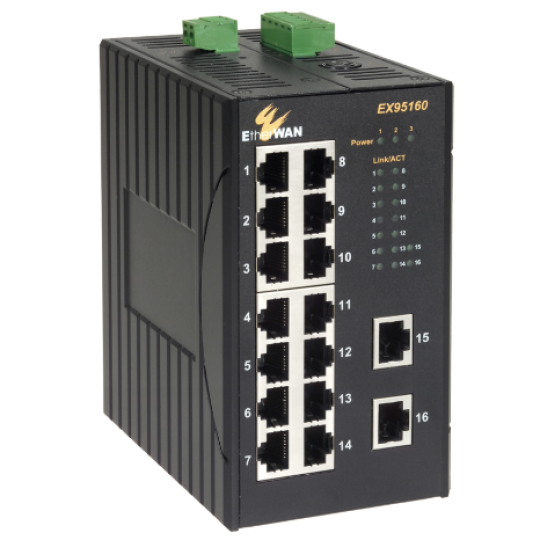

Bộ chuyển mạch Ethernet EX95000 EtherWan, EX95000 EtherWan, EX95000, EtherWan

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3x Full duplex and flow control
• Forward and Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
• Packet Buffer Memory
  • 1.625M bits
• Processing Type
  • Store-and-Forward
  • Auto Negotiation
  • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • Auto MDI/MDIX
• Address Table Size
  • 4096 MAC addresses
• Latency
  • Less than 10μs

Power

• Input Voltage
  • 12-48VDC (Terminal Block)
  • 12VDC (DC Jack)
• Power Consumption
  • 7.4W Max. 0.6A@12VDC
  • 0.3A@24VDC
  • 0.15A@48VDC

Mechanical

• Casing Material
  • Aluminum Case
• IP Rating
  • IP30
• Dimensions
  • 75.5 x 110 x 135mm (W x D x H)
    (2.98" x 4.33" x 5.31")
• Weight
  • 0.87Kg (1.92lbs.)
• Installation
  • DIN-Rail (Top hat type 35mm), Panel or Rack mounting

Interface

• Ethernet Ports
  • 10/100BASE-TX: 16, 15 or 14 ports
  • 100BASE-FX: 0, 1 or 2 ports
• LED Indicators
  • Per Unit: Power 1 (Green), Power 2 (Green), Power 3 (Green)
  • Per Port: Link/Activity (Green)
• Alarm Contact
  • One relay output with current 1A@24VDC

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -40 to 85°C (-40 to 185°F)
• Relative Humidity
  • 5% to 95% (non-condensing)

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • EN 61000-6-4
  • EN 55022
  • EN 61000-3-2
  • EN 61000-3-3
• EMS
  • EN 61000-6-2
    • - EN 61000-4-2 (ESD)
    • - EN 61000-4-3 (Radiated RFI)
    • - EN 61000-4-4 (Burst)
    • - EN 61000-4-5 (Surge)
    • - EN 61000-4-6 (Induced RFI)
    • - EN 61000-4-8 (Magnetic field)
• Safety
  • UL 508
• Environmental Test Compliance
  • IEC 60068-2-6 Fc (Vibration)
  • IEC 60068-2-27 Ea (Shock)
  • FED STD 101C Method 5007.1 (Free fall w/package)
