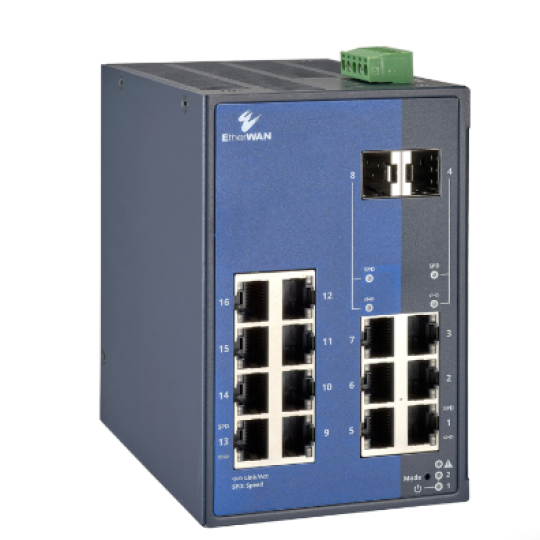

Bộ chuyển mạch Ethernet SG300-16 EtherWan, SG300-16, SG300-120202c, SF300-16, SF300-1402, SG300-08, SG300-0602, SF300-05, SF300-08, SF300-0602, EtherWan

Interface

• Ethernet
  • 10/100BASE-T(X): 5, 6, 8, 14, or 16 ports
  • 100BASE SFP: 0, or 2 ports
  • 10/100/1000BASE-T(X): 6, 8, 12, or 16 ports
  • 100/1000BASE SFP: 0, 2, or 4 ports
• Alarm Contact
  • 1 x Digital output, current capacity
  • Typ. 100mA, Max. 0.7A (1minute)
• LED Indicators
  • Per Unit: Power 1 (Green), Power 2 (Green), Alarm (Red)
  • Per Port: Link/Activity (Green; Orange: when SFP link at Combo port), Speed (Off: 10Mbps; Green: 100Mbps; Orange: 1000Mbps)
• Mode Button
  • Exiting reset mode without changes
  • Resetting to the factory settings
  • Operating with a fixed IP address
  • Resetting the IP configuration
  • Operating in unmanaged mode

Technology

• Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/100BASE-FX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-SX/1000BASE-LX
  • IEEE 802.3x Full duplex and flow control
  • IEEE 802.3ad LACP
  • IEEE 802.1p QoS
  • IEEE 802.1Q Tag VLANS
  • IEEE 802.1w RSTP
  • IEEE 802.1ab LLDP
  • IEEE 802.1x Port-based Network Access Control
  • IEC 62439-2 MRP (Media Redundancy Protocol)*
    *MRP will be available in Q1, 2023
• Forward/Filtering Rate
  • 14,880pps for 10Mbps
  • 148,880pps for 100Mbps
  • 1,488,000pps for 1000Mbps
• Processing Type
  • Store-and-Forward
  • Auto-Negotiation
  • Half-duplex back-pressure full-duplex flow control
  • Auto MDI/MDIX
• System Memory
  • 4M bits
• Flash Storage
  • 8K MAC

Power

• Input
  • 12-57VDC Redundant
• Power Consumption
  • 8 ports: 8.55W Max
  • 16 ports: 11.4W Max
• Protection
  • Reverse Polarity Protection

Physical

• Casing Material
  • Metal
• IP Rating
  • IP30
• Dimensions
  • 5, 8 ports: 45 x 125.5 x 130mm (W x D x H)
  • 16 ports: 85 x 125.5 x 130mm (W x D x H)
• Weight
  • 8 ports, 388g
  • 16 ports, 676g
• Installation Type
  • DIN-Rail
  • Panel mounting (Optional)

Environmental

• Operating Temp.
  • -40 to 75°C (-40 to 167°F)
• Storage Temp.
  • -40 to 85°C (-40 to 185°F)
• Relative Humidity
  • 10% to 95% (non-condensing)
• MTBF
  • 8 ports: 2,937,277.25 hours
  • 16 ports: 2,255,206 hours

Regulatory

• ISO
  • Manufactured in ISO-9001 facility
• EMI
  • FCC Part 15B Class A
  • VCCI Class A
  • ICES-003
  • EN 61000-6-4
• EMS
  • EN 61000-3-2
  • EN 61000-3-3
  • EN 61000-6-2
    EN 61000-4-2 (ESD)
  • EN 61000-4-3 (Radiated RFI)
  • EN 61000-4-4 (Burst)
  • EN 61000-4-5 (Surge)
  • EN 61000-4-6 (Induced RFI)
  • EN 61000-4-8 (Magnetic Field)
• Safety
  • UL 61010
• Vibration
  • IEC 60068-2-6
• Shock
  • IEC 60068-2-27
• Free Fall
  • FED STD 101C Method 5007.1

Warranty

• Length
  • 3 Years

What's Included

• Device
  • Ethernet switch
• Installation
  • DIN-Rail bracket, screws
• Documentation
  • Quick install guide
