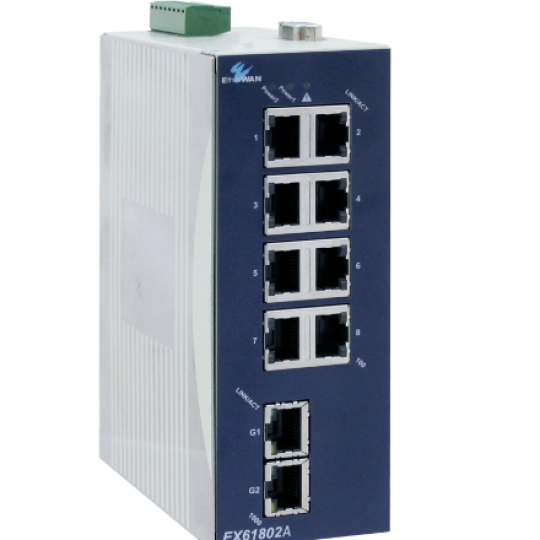

Bộ chuyển mạch Gigabit Ethernet EX61000A EtherWan
EtherWAN’s EX61000A Series provides an industrial fully managed 10-port switching platform that combines high performance with robust and secure management features required for mission critical and harsh environments.
The EX61000A Series is equipped with eight 10/100BASE Fast Ethernet ports, in combination with up to two Gigabit, fixed fiber, or SFP port options. Mountable on a DIN-rail, the EX61000A Series is equipped with EtherWAN’s Alpha-Ring self-healing redundancy protocol, which provides a fault recovery time of less than 15ms, making it ideal for applications intolerant to interruption.
With support for both IPV4 and IPV6, management features include port security, IGMP snooping, VLANs, GARP protocols, and LACP. Management is via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
-
Liên hệ
-
623
- Thông tin sản phẩm
- Bình luận
Bộ chuyển mạch Gigabit Ethernet EX61000A EtherWan, EX61000A EtherWan, EX61000A, EtherWan
Technology
- Standards
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/100BASE-FX
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
- IEEE 802.3x Full duplex and flow control
- IEEE 802.1p QoS
- IEEE 802.1Q Tag VLANs
- IEEE 802.1w RSTP
- IEEE 802.1x Port-based Network Access Control
- Forward and Filtering Rate
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
- Packet Buffer Memory
- 12M bits
- Processing Type
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
- Auto MDI/MDIX
- Address Table Size
- 16K MAC addresses
Power
- Input
- Redundant power inputs: 12-48VDC (Terminal Block)
- Power Consumption
- 7.5W Max. 0.31A@24VDC
- Protection
- Reverse polarity protection
Mechanical
- Casing
- Aluminum Case
- IP30
- Dimensions
- 60 x 125 x 145mm (W x D x H)
(2.36" x 4.92" x 5.7")
- 60 x 125 x 145mm (W x D x H)
- Weight
- 1.03Kg
- Installation
- DIN-Rail
Interface
- Ethernet Port
- 10/100BASE-TX: 4, 6 or 8 ports
- 100BASE-FX: 0 to 4 ports
- Gigabit: 0, 1 or 2 ports
- Console Port
- Port: One DB9 RS-232 port
- LED Indicators
- Per Unit: Power 1, Power 2, Alarm
- Per Port: Link/Activity, Speed
- Alarm Contact
- One relay output with current 1A/250VAC
Environment
- Operating Temperature
- -10 to 60°C (-14 to 140°F)
Tested @ -20 to 70°C (-4 to 158°F)
- -10 to 60°C (-14 to 140°F)
- Storage Temperature
- -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity
- 5% to 95% (non-condensing)
Regulatory Approvals
- ISO
- Manufactured in an ISO 9001 facility
- Safety
- UL 61010
- EMI
- FCC Part 15B Class A
- EN 61000-6-4
- EN 55032
- EN 61000-3-2
- EN 61000-3-3
- EMS
- EN 61000-6-2
- EN 61000-4-2 (ESD Standards)
- EN 61000-4-3 (Radiated RFI Standards)
- EN 61000-4-4 (Burst Standards)
- EN 61000-4-5 (Surge Standards)
- EN 61000-4-6 (Induced RFI Standards)
- EN 61000-4-8 (Magnetic Field Standards)
- EN 61000-6-2
- Environmental Test Compliances
- FED STD 101C Method 5007.1 (Free fall w/package)
- Industrial Compliance
- EN 50121-4
