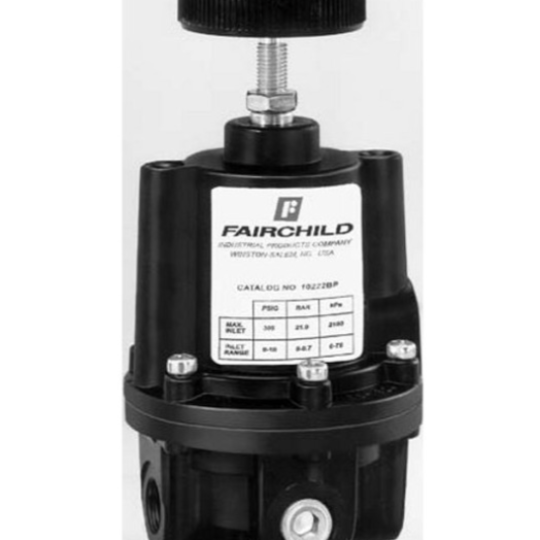

Bộ điều áp Pressure Regulator 10272BP Fairchild, Pressure Regulator 10272BP, Bộ điều áp 10272BP, 10272BP Fairchild

• Manufacturer: Fairchild Products

• Accuracy: 0.10 psi
• Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
• Base Model: 10272BP
• Body Material: Aluminum
• Connection Size: 1/4 in. FNPT
• Elastomer: Nitrile on Dacron
• Flow Capacity: 40 SCFM @ 100 PSIG
• Operator: Knob (standard) 1-7/8 in. O.D.
• Options: None
• Pipe Size: 1/4 FNPT
• Pressure Range: 0 to 200 psig
• Product Type: Back Pressure Regulators
• Sensitivity: Less than 1/8 in. W.C.
• Supply Pressure: 300 psi
• Trim: Zinc-Plated Steel Brass
• Product Category: Regulators
• Regulator Type: Back Pressure Regulator
