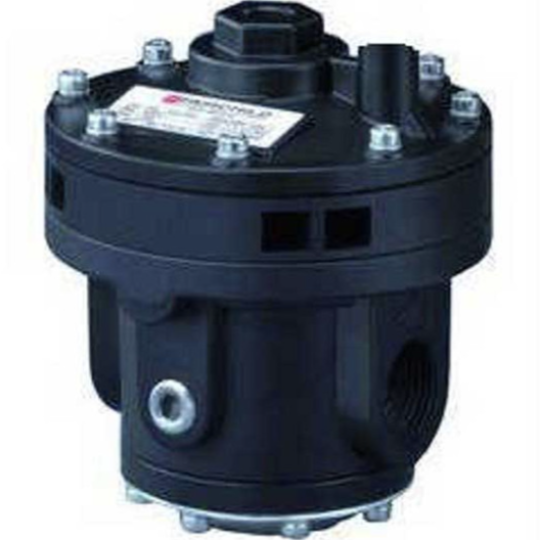

Bộ điều chỉnh khí nén Pneumatic Volume Booster Z19586-4516AU / 4516AU Fairchild, Z19586-4516AU, 4516AU Fairchild

• Manufacturer: Fairchild Products

• Accuracy: 0.50 psi
• Ambient Temperature: -40° to 200 °F (-40° to 93.3 °C)
• Base Model: 4516A
• Body Material: Aluminum
• Connection Size: 3/4 in. BSPT
• Elastomer: Nitrile on Dacron
• Exhaust Capacity: 40 SCFM [65.2m³/hr] where downstream pressure is 5 psi above 20 psi setpoint
• Exhaust Type: Straight (standard)
• Flow Capacity: 150 SCFM (255 m³/hr)
• FlowCv: 3
• Max. Output Pressure: 150 psig
• Max. Supply Pressure: 250 psig
• Mounting: Wall (20555-1 bracket required)
• Operator: Pneumatic Pilot Signal
• Options: BSPT (Tapered), None
• Pipe Size: 3/4 BSPT
• Pressure Range: 0 to 150 psi
• Product Type: Pneumatic Volume Boosters
• Ratio: 1:01
• RatioAccuracy: 3.0% of 100 psi output span
• Sensitivity: 1 in. WC
• Signal to Output Pressure Ratio: 1:01
• Supply Pressure: 250 psi
• Product Category: Pneumatic Volume Boosters
