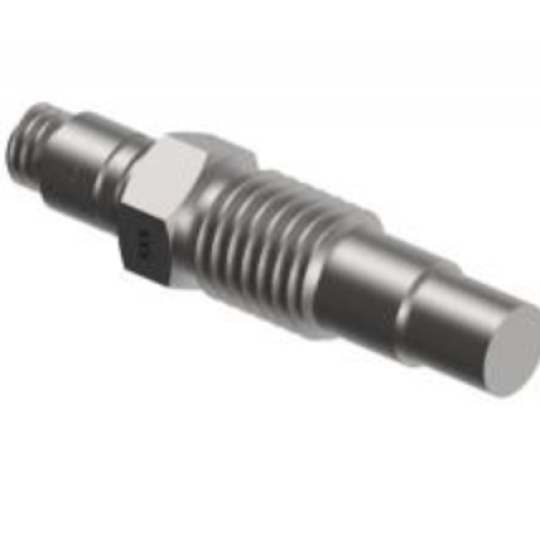

The Dytran series 2300C is a high temperature piezoelectric charge mode pressure transducer with a sensitivity of 0.35 pC/psi designed for reliable operation in temperatures up to +500°F (+260°C). Available with a measurement range from 100 to 15,000 psi, the series 2300C utilizes a stable quartz sensing element, packaged in a rugged stainless steel housing with probe–style design, incorporating a 10–32 axial connector and weighing just 6.5 grams. In addition, the Dytran series 2300C is acceleration compensated to reduce the risk of spurious ambient vibration signals adding to signal output, enhancing the transducer's natural frequency which facilitates an ultra fast rise time.

2300C1	0.35 pC/psi sensitivity, 100 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation
2300C2	0.35 pC/psi sensitivity, 500 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation

2300C3

0.35 pC/psi sensitivity, 1,000 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation

2300C4

0.35 pC/psi sensitivity, 3,000 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation

2300C5

0.35 pC/psi sensitivity, 5,000 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation

2300C6

0.35 pC/psi sensitivity, 10,000 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation

2300C7

0.35 pC/psi sensitivity, 15,000 psi calibrated range, 10–32 axial connector, 5/16–24 mounting thread, 6.5 grams,–100 to +500°F Operation
