CẢM BIẾN ÁP SUẤT IPE 2301B4 / 2301B6 Dytran instruments, 2301B6 Dytran, 2301B4 Dytran, IEPE PRESSURE SENSOR Dytran

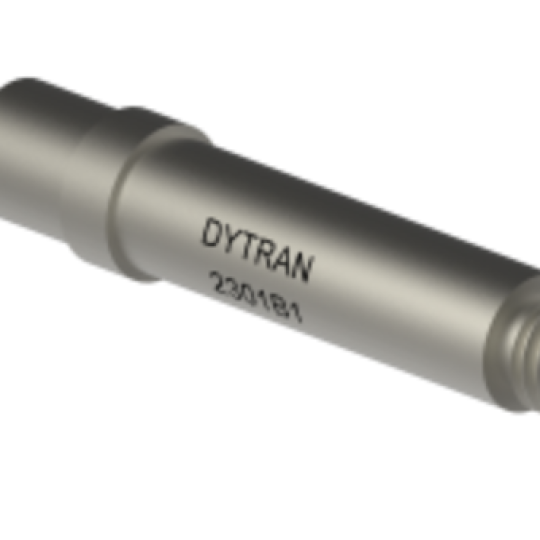

The Dytran series 2301 is a miniature, ultra high frequency probe style IEPE pressure sensor, offered with a range from 250 to 15,000 psi.

Design of the Dytran series 2301 incorporates a stable quartz sensing element operating in compression mode, packaged in a lightweight titanium housing, with mounting via an external floating clamp nut with 5/16–24 mounting thread, for an overall weight of just 5 grams. This style of pressure sensor is physically interchangeable in mounting ports prepared for one–piece probes with 5/16–24 external threads. Units are recommended for general purpose use and for replacement in installations in which there is little chance that the sensor will become lodged in the mounting port. Series 2301 is hermetically sealed for reliable operation in harsh and dirty environments.
