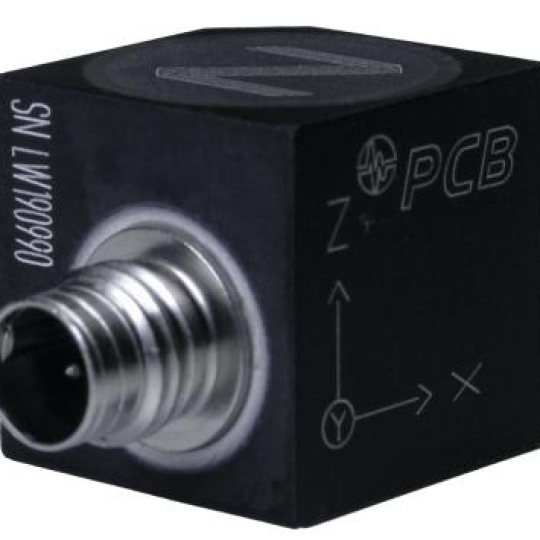

Cảm biến gia tốc 356A16 | Triaxial ICP Accelerometer

Platinum Stock Products; Triaxial, high sensitivity, ceramic shear ICP® accel., 100 mV/g, 0.5 to 5k Hz, aluminum hsg, 4-pin conn.

Sensitivity: (±10%)100 mV/g ( 10.2 mV/(m/s²))

Measurement Range: ±50 g pk ( ±490 m/s² pk)

Electrical Connector: 1/4-28 4-Pin

Mã sản phẩm:
356A16
Giá:
Liên hệ
Lượt xem:
1541

Thông tin sản phẩm
Bình luận

ENGLISH:	SI:
PERFORMANCE
Sensitivity (±10 %)	100 mV/g	10.2 mV/(m/s²)
Measurement Range	±50 g pk	±490 m/s² pk
Frequency Range (±5 %) (y or z axis)	0.5 to 5000 Hz	0.5 to 5000 Hz
Frequency Range (±5 %) (x axis)	0.5 to 4500 Hz	0.5 to 4500 Hz
Frequency Range (±10 )	0.3 to 6000 Hz	0.3 to 6000 Hz
Resonant Frequency	≥25 kHz	≥25 kHz
Broadband Resolution (1)	0.0001 g rms	0.001 m/s² rms	[ 2]
Phase Response (±5 °)	1.0 to 5000 Hz	1.0 to 5000 Hz
Non-Linearity	≤1 %	≤1 %	[ 1]
Transverse Sensitivity	≤5 %	≤5 %
ENVIRONMENTAL
Overload Limit (Shock)	±7000 g pk	±68600 m/s² pk
Temperature Range (Operating)	-65 to +176 °F	-54 to +80 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[ 2]
Base Strain Sensitivity	0.001 g/µε	0.01 (m/s²)/µε	[ 2]
ELECTRICAL
Excitation Voltage	20 to 30 VDC	20 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤200 Ohm	≤200 Ohm
Output Bias Voltage	8 to 12 VDC	8 to 12 VDC
Discharge Time Constant	1.0 to 3.0 sec	1.0 to 3.0 sec
Settling Time (within 10% of bias)	<10 sec	<10 sec
Spectral Noise (1 Hz)	40 µg/√Hz	392 (µm/sec²)/√Hz	[ 2]
Spectral Noise (10 Hz)	10 µg/√Hz	98 (µm/sec²)/√Hz	[ 2]
Spectral Noise (100 Hz)	3 µg/√Hz	29.4 (µm/sec²)/√Hz	[ 2]
Spectral Noise (1 kHz)	1 µg/√Hz	9.8 (µm/sec²)/√Hz	[ 2]
Spectral Noise (10 kHz)	0.5 µg/√Hz	4.9 (µm/sec²)/√Hz	[ 2]
PHYSICAL
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Anodized Aluminum	Anodized Aluminum
Sealing	Epoxy	Epoxy
Size - Height	0.55 in	14.0 mm
Size - Length	0.80 in	20.3 mm
Size - Width	0.55 in	14.0 mm
Weight	0.26 oz	7.4 gm	[ 2]
Electrical Connector	1/4-28 4-Pin	1/4-28 4-Pin
Electrical Connection Position	Side	Side
Mounting Thread	10-32 Female	10-32 Female
Mounting Torque	10 to 20 in-lb	113 to 225 N-cm

* All specifications are at room temperature unless otherwise specified

Specification Notes

[ 1] Zero-based, least-squares, straight line method.
[ 2] Typical.
[ 3] See PCB Declaration of Conformance PS023 for details.

Accessories


Supplied
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
080A12	Adhesive mtg base, 0.75" hex x 0.2" thk, 10-32 tapped hole, aluminum w/insulating hardcoat finish	1
081B05	Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder	1
ACS-1T	Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable	1
M081B05	Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu	1
